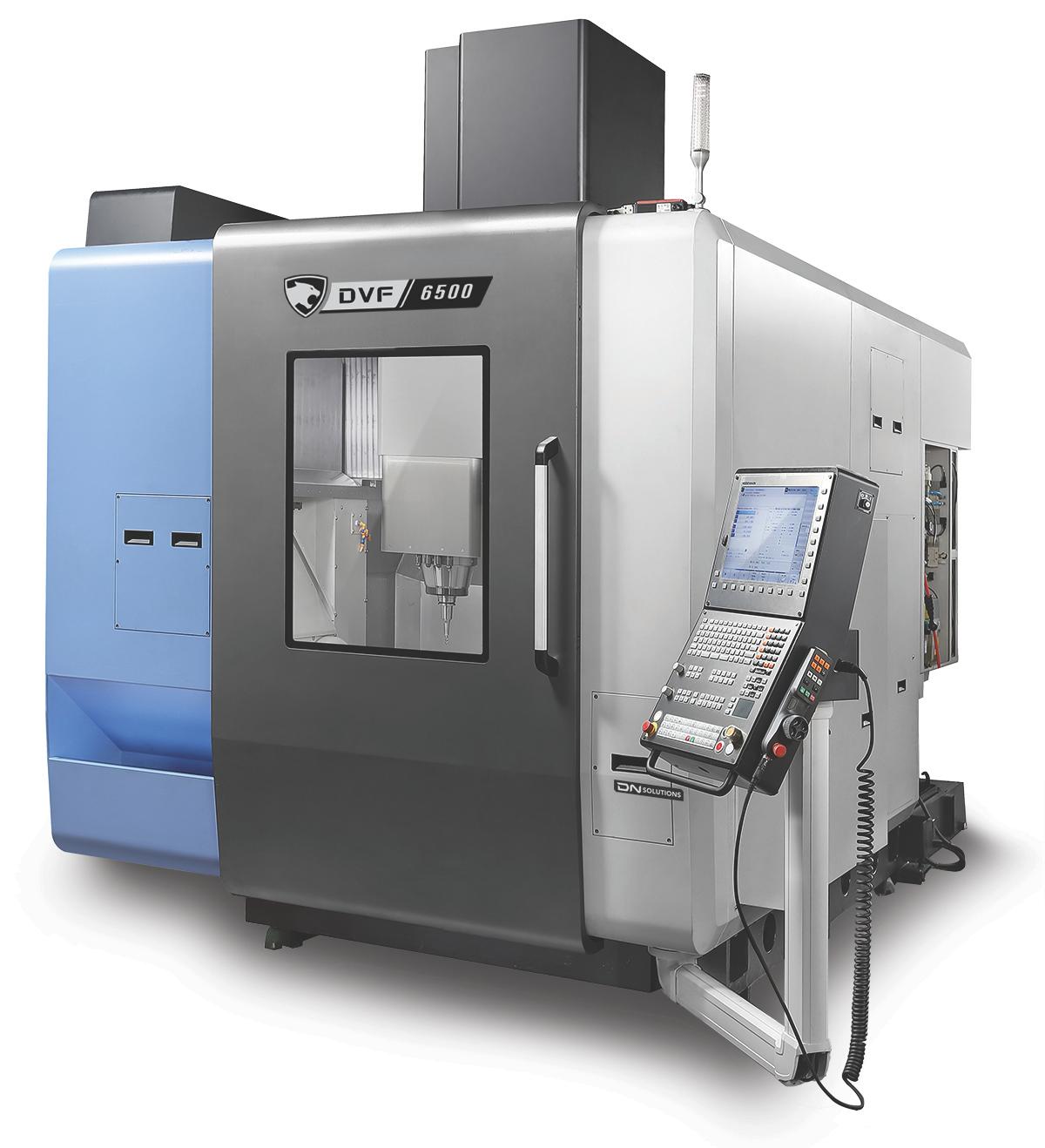

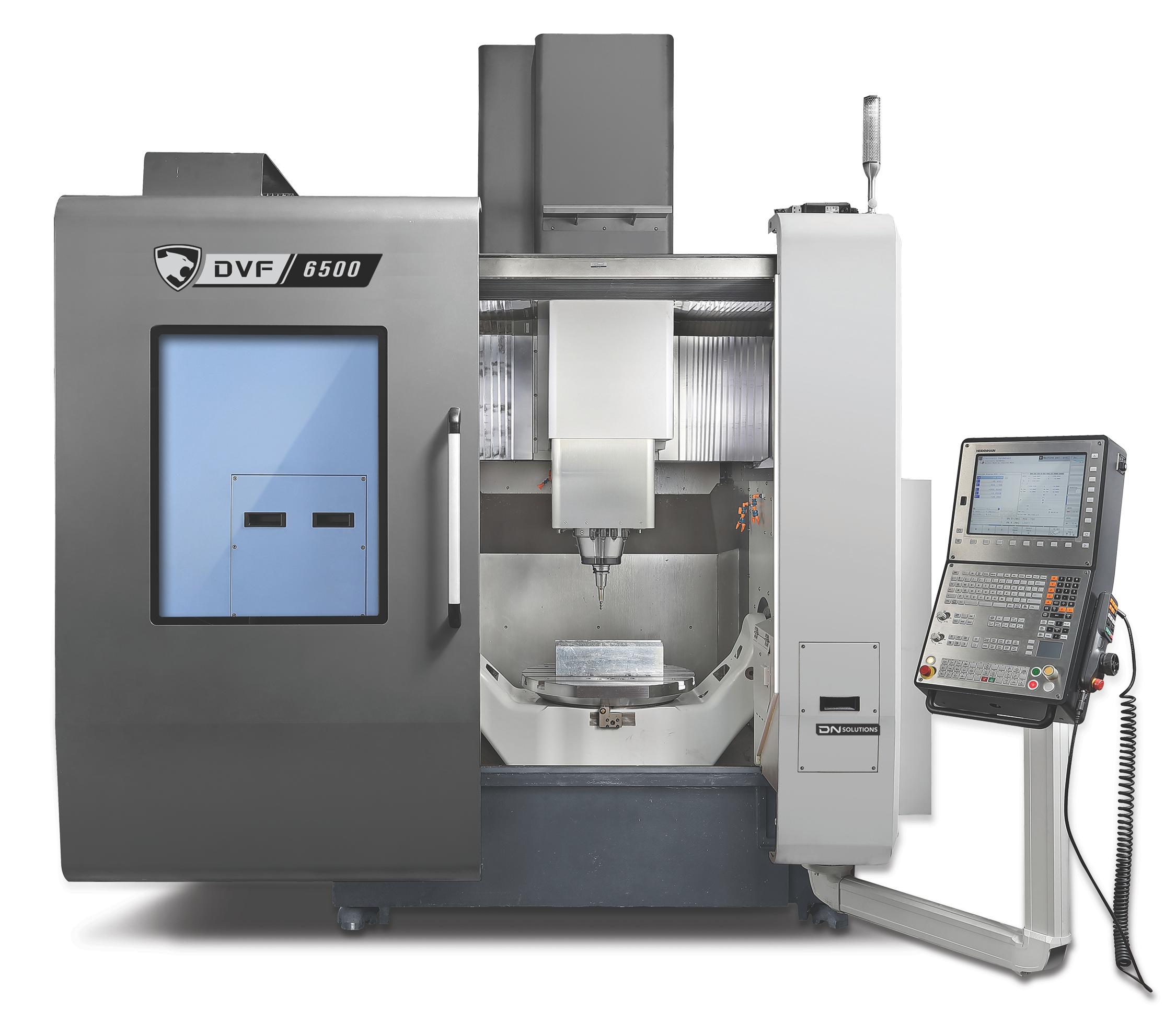

DVF 6500 Series

PREMIUM SIMULTANEOUS 5-AXIS MACHINING CENTER

  • High Precision: Designed for accurate machining of complex parts with advanced 5-axis capabilities.
  • Compact and Stable: Ideal for small to medium-sized workpieces, offering a stable structure in a space-saving design.
  • Eco-Friendly and Cost-Effective: Features grease lubrication on X/Y/Z axes, reducing environmental impact and operational costs.

Highlights

  • Travels - X Axis Travel distance (mm): 750
  • Travels - Y Axis Travel distance (mm): 785
  • Travels - Z Axis Travel distance (mm): 600

Compatible Control System

    Heidenhain

Series description

The DVF Series includes premium 5-axis vertical machining centers, such as the DVF 4000, DVF 5000, DVF 6500, and DVF 8000, all designed for high-precision machining of complex parts. These models offer enhanced reliability and productivity, featuring eco-friendly grease lubrication on the X/Y/Z axes. Their stable structure and compact footprint make them ideal for producing small to medium-sized workpieces with intricate shapes. Additionally, the DVF Series provides optional table turning functionality for complete machining in a single setup, catering to a wide range of manufacturing needs.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

DETAIL1750 https://youtu.be/-9wJQwAyZ6Y https://youtu.be/-9wJQwAyZ6Y

Travels

Travels - X Axis Travel distance (mm) 750
Travels - Y Axis Travel distance (mm) 785
Travels - Z Axis Travel distance (mm) 600
Travels - Z Axis Rapid Traverse (m/min) 45

Feed rates

Feed rate - X Axis Rapid Traverse 45
Feed rate - Y Axis Rapid Traverse 45

Table

Max. Workpiece weight (kg) 600

Workpiece capacity

Max. Workpiece Diameter (mm) 840
Max. Workpiece Height (mm) 500
Max. Workpiece weight (kg) 600

Tool storage capacity

Machining center - No. of tool station 40

Main spindle

Main Spindle Max. Speed 12000
Main Spindle Max. Power 30
Main Spindle Max. Torque 155
Tool Taper (ISO)

Turret

Turret - No. of tool station 40

Dimensions

Length (mm) 3700
Height (mm) 3100
Width (mm) 2450
Weight (kg) 14500
  Name Download File type
DVF 6500 Series
DVF_6500-8000-8000T.pdf 6115 KB
.pdf
