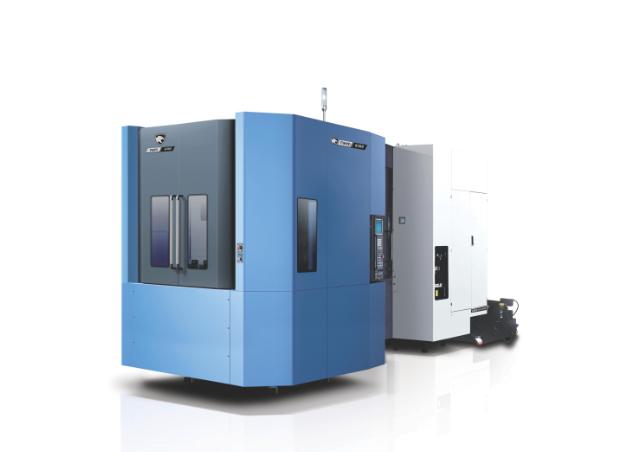

NHM 6300 Series

HIGH CAPABILITY HORIZONTAL MACHINING CENTER

  • Superior Machining Capabilities: Offers the largest specifications and powerful cutting performance for diverse production needs.

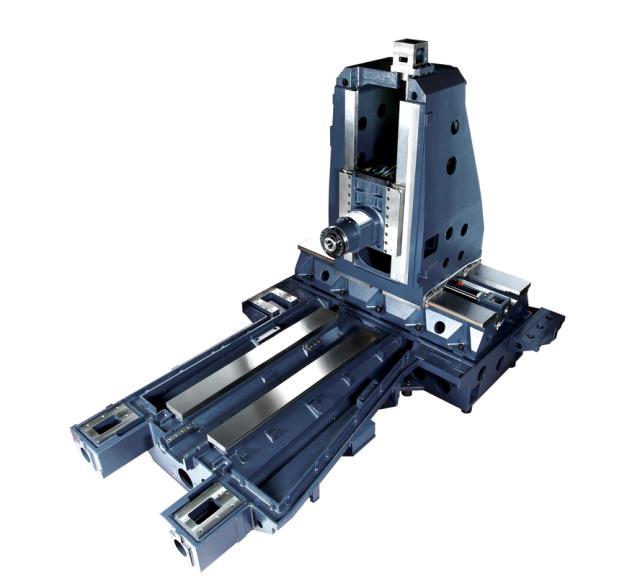

  • High Rigidity: Integrated box-type guideway structure ensures optimal stability and precision, even with hard-to-cut materials.
  • Increased Productivity: Fast tool and pallet replacement, driven by servo motors, minimizes non-cutting time for enhanced efficiency.

Highlights

  • Travels - X Axis Travel distance (mm): 1050
  • Travels - Y Axis Travel distance (mm): 850
  • Travels - Z Axis Travel distance (mm): 1000

Compatible Control System

    Fanuc

Series description

The NHM Series offers the largest machining specifications and production capabilities in its class, delivering powerful cutting performance to meet diverse production needs. With an integrated box-type guideway structure, it provides exceptional rigidity and is optimized for machining a wide range of materials, from standard components to hard metals. The series also features fast tool and pallet replacement driven by servo motors, minimizing non-cutting time and enhancing both reliability and productivity.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

Travels

Travels - X Axis Travel distance (mm) 1050
Travels - Y Axis Travel distance (mm) 850
Travels - Z Axis Travel distance (mm) 1000
Travels - Z Axis Rapid Traverse (m/min) 30

Feed rates

Feed rate - X Axis Rapid Traverse 30
Feed rate - Y Axis Rapid Traverse 30

Table

Max. Workpiece weight (kg) 1200
Pallet Size (mm) 630

Workpiece capacity

Max. Workpiece Diameter (mm) 1050
Max. Workpiece Height (mm) 1350
Max. Workpiece weight (kg) 1200

Tool storage capacity

Machining center - No. of tool station 60

Main spindle

Main Spindle Max. Speed 6000
Main Spindle Max. Power 35
Main Spindle Max. Torque 1732
Tool Taper (ISO)

Turret

Turret - No. of tool station 60

Dimensions

Length (mm) 6410
Height (mm) 3495
Width (mm) 3930
Weight (kg) 20500
  Name Download File type
NHM 6300 Series
NHM series.pdf 6581 KB
.pdf

The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
