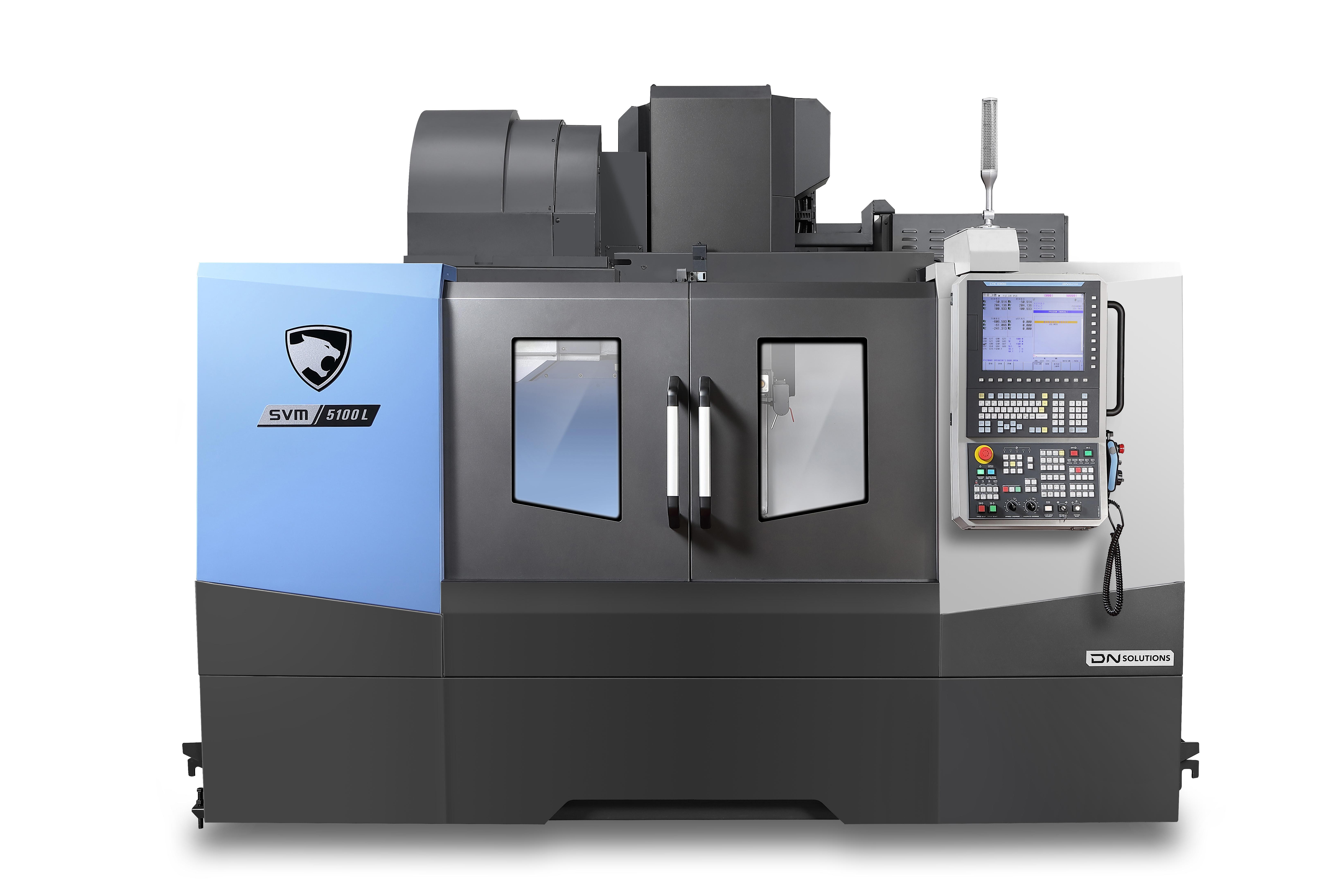

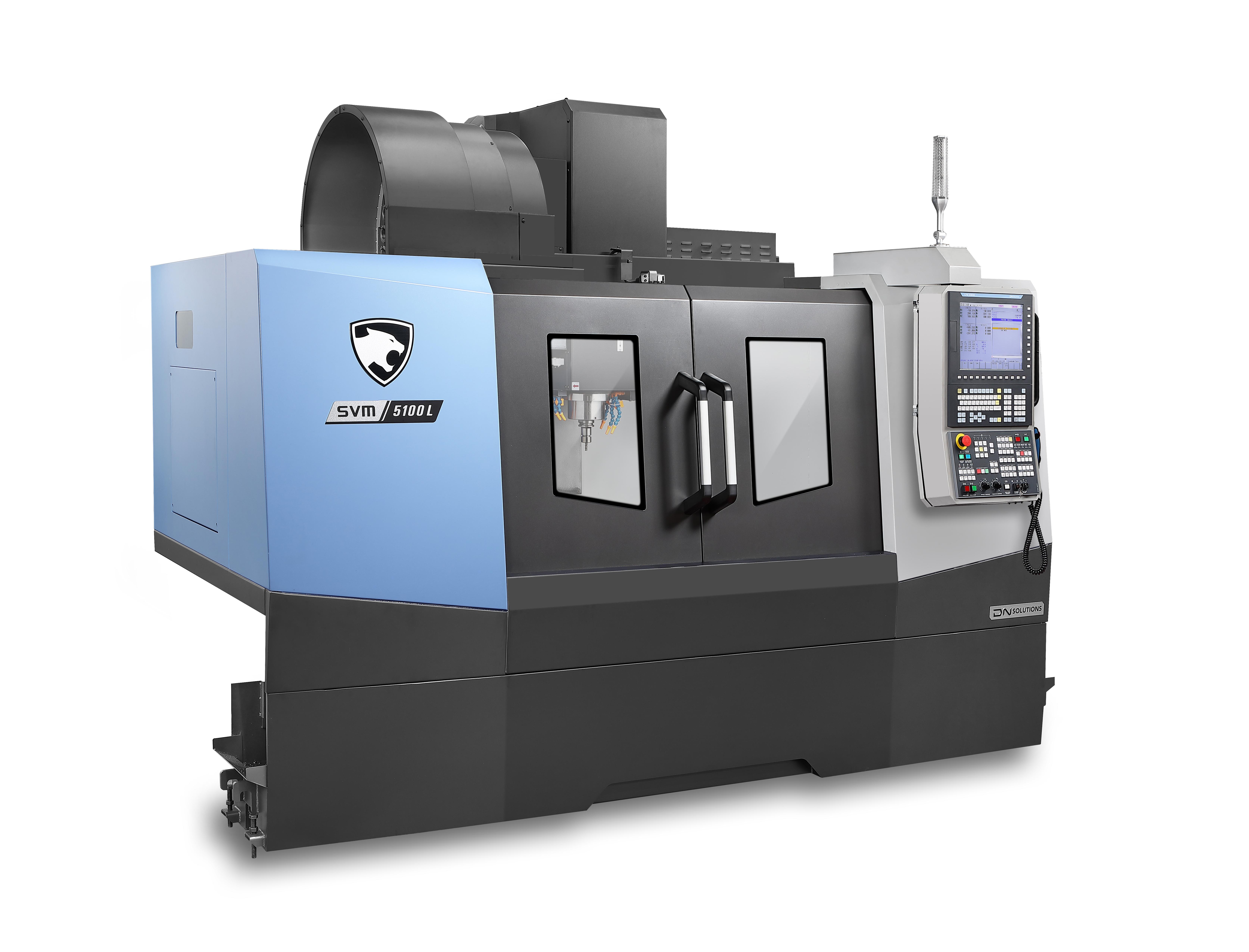

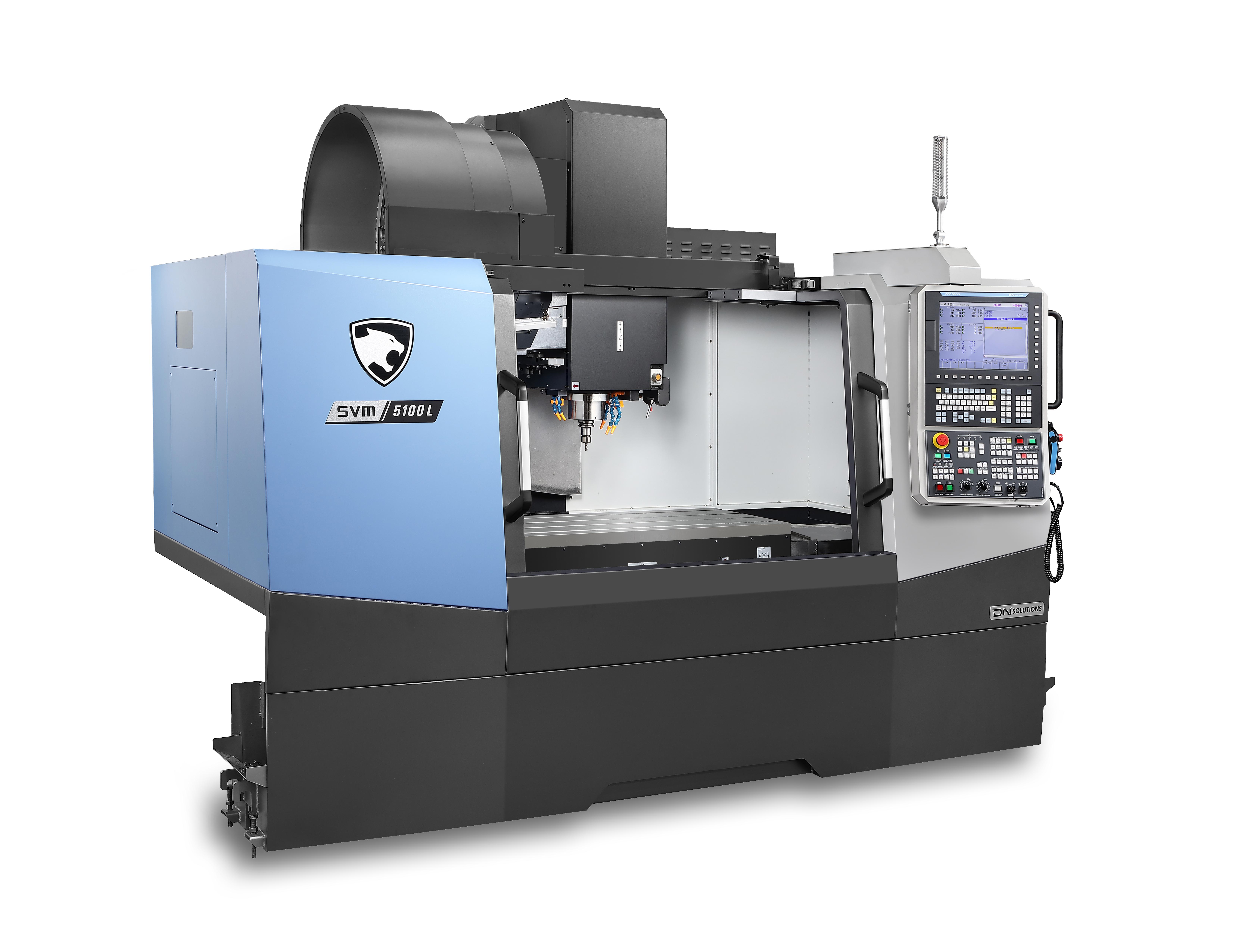

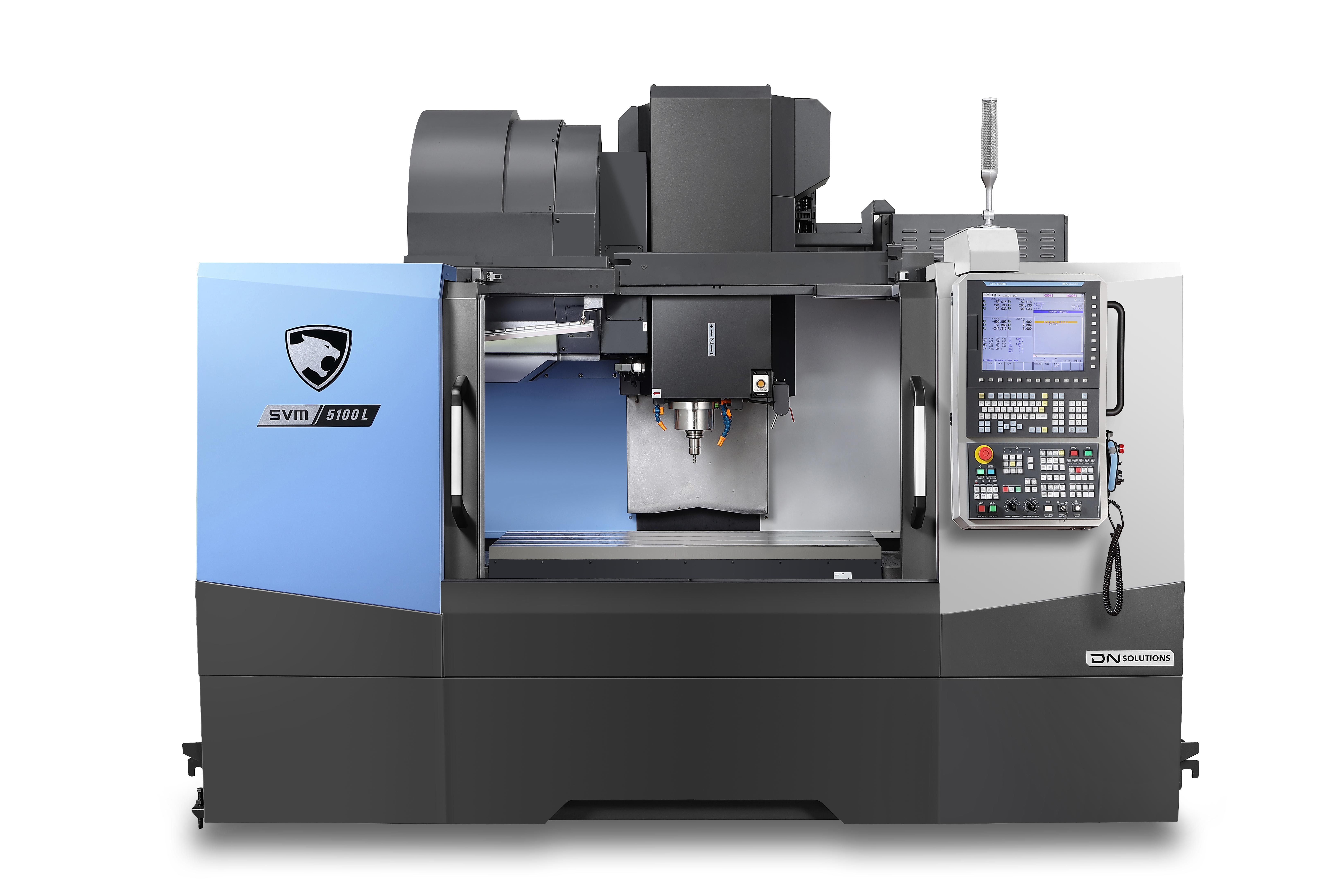

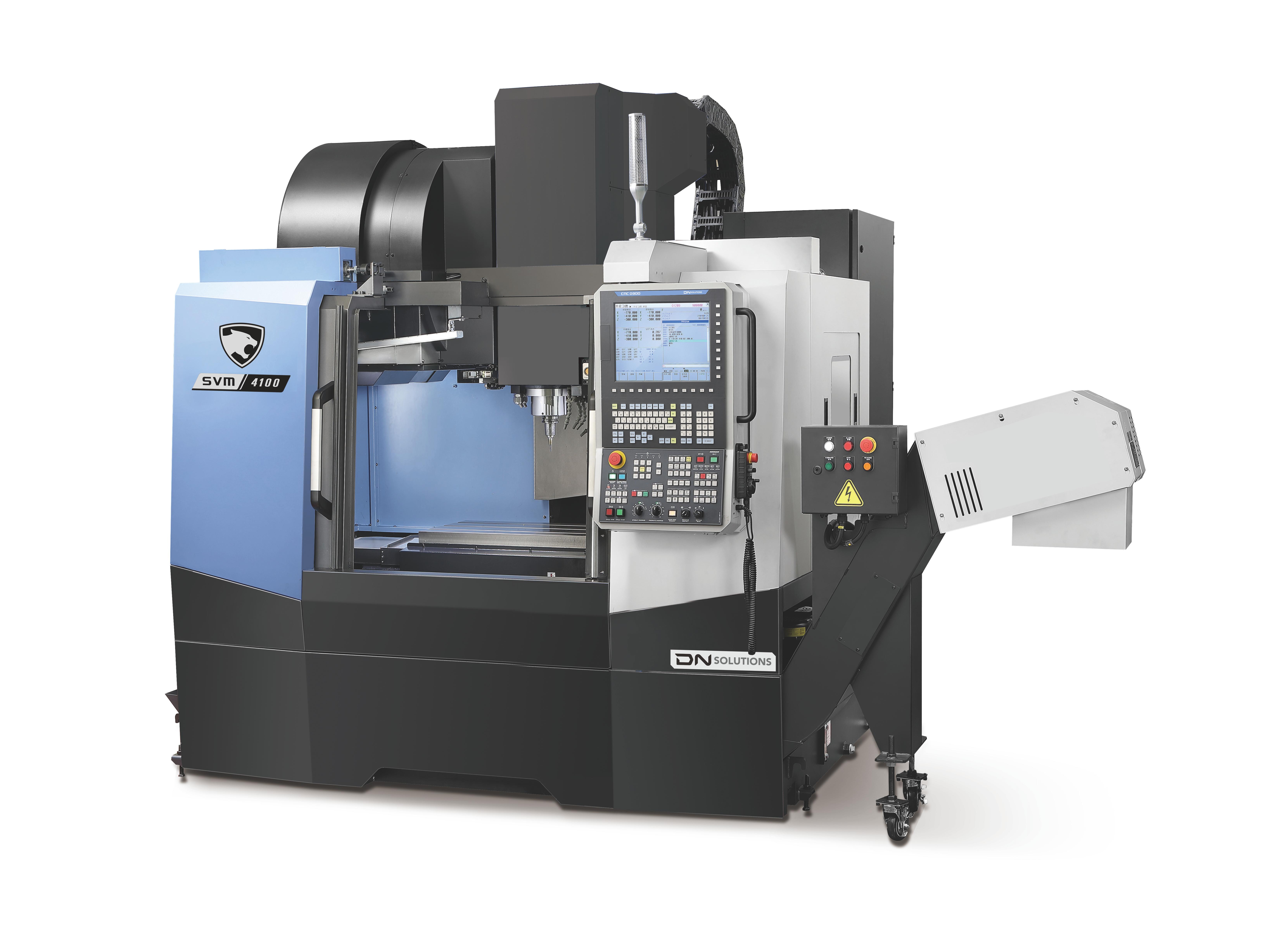

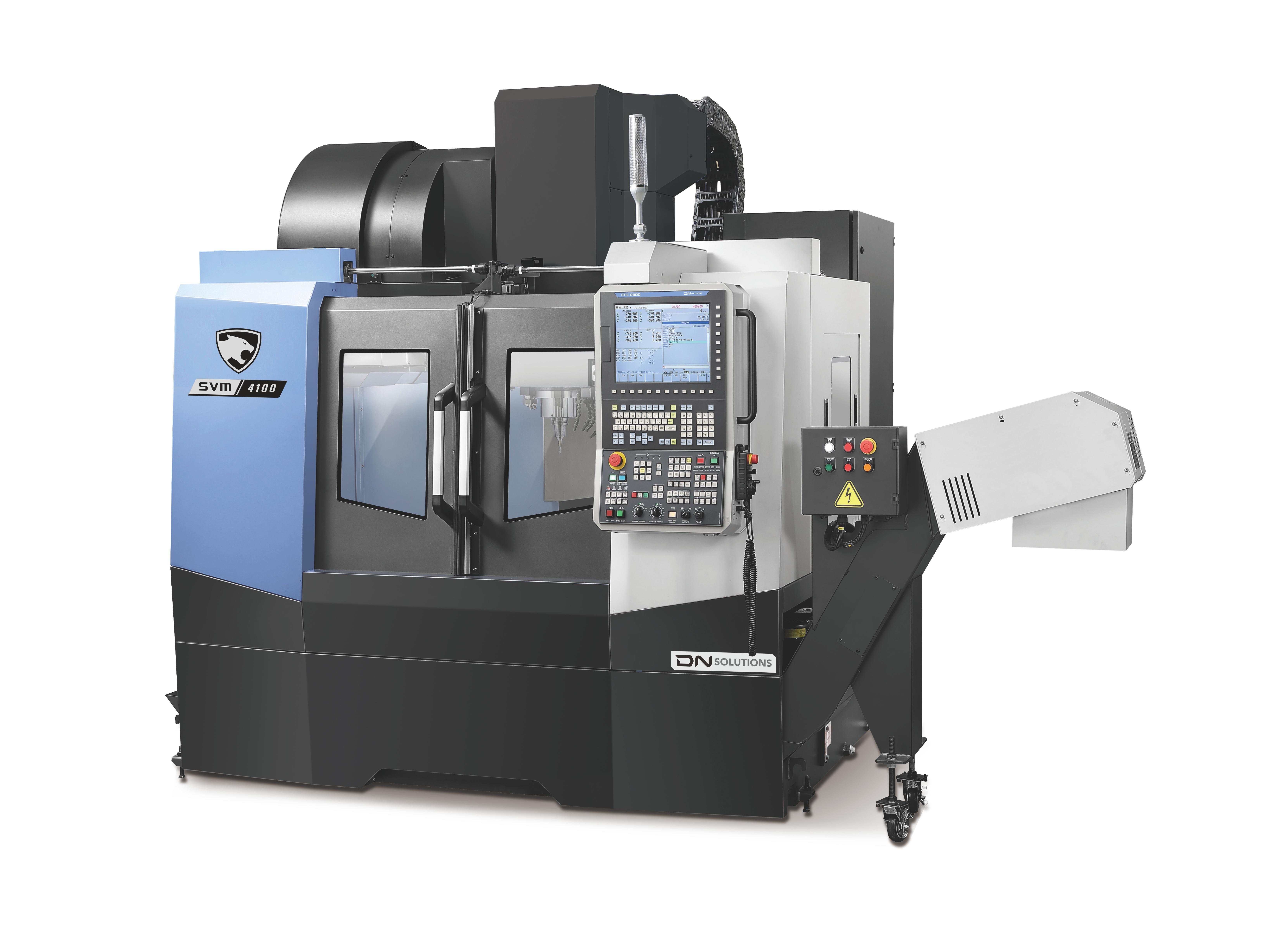

SVM Series

HIGH PRODUCTIVITY SWIFT VERTICAL MACHINING CENTER

  • Optimized Cycle Times: Improved acceleration and deceleration of XYZ axes and spindle reduce non-cutting time for faster production.
  • Versatile Machining: Ideal for both aluminum die castings and light-duty steel machining, catering to diverse industry needs.
  • Large Machining Envelope: Provides the largest workspace in its class, with advanced features like thermal displacement correction for precision and flexibility.

Highlights

  • Travels - X Axis Travel distance (mm): 770
  • Travels - Y Axis Travel distance (mm): 410
  • Travels - Z Axis Travel distance (mm): 510

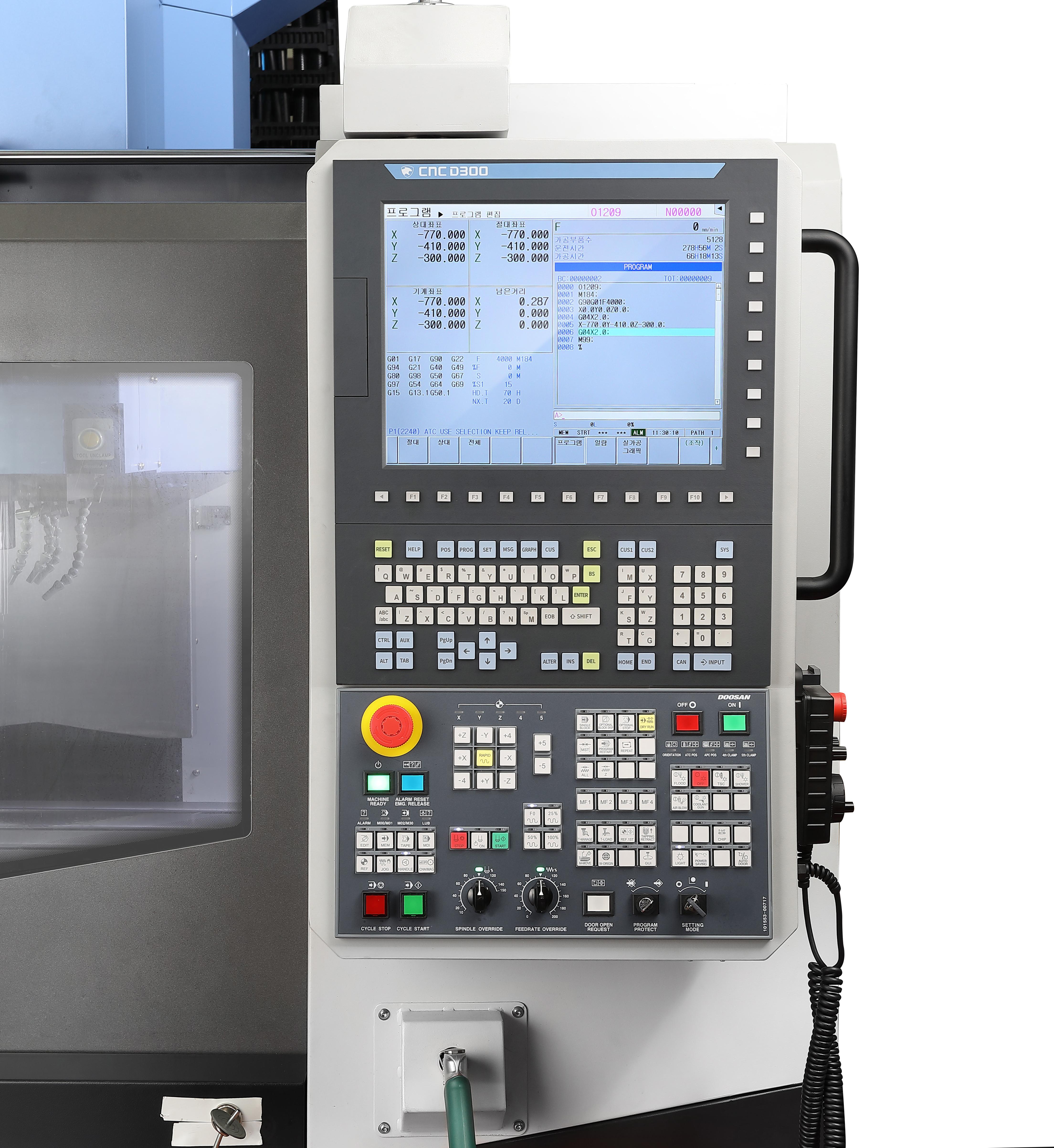

Compatible Control System

    Fanuc

Series description

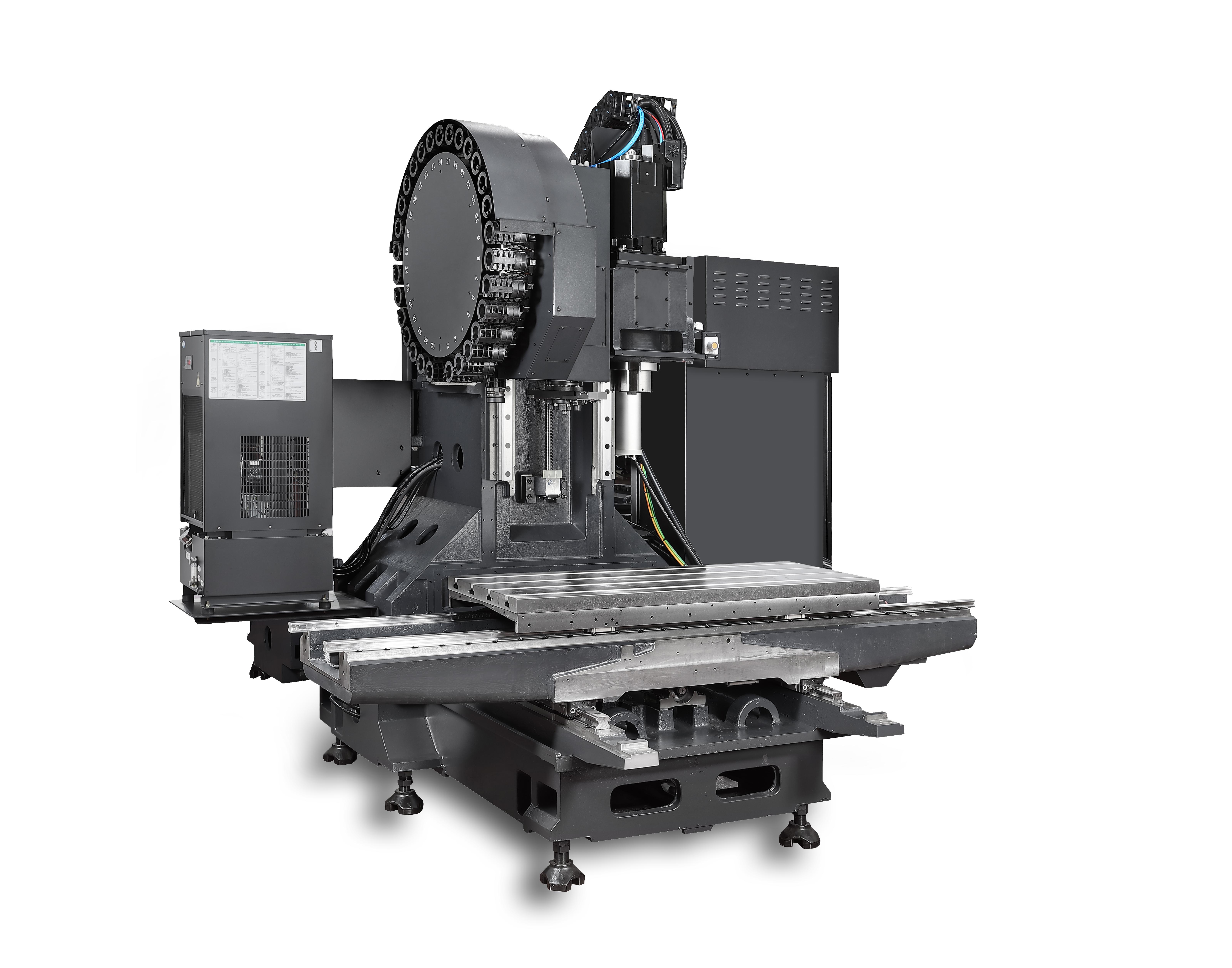

The SVM Series vertical machining center is designed to meet the growing demand for machining aluminum die castings in the Automotive and IT industries, while also being versatile enough for general-purpose light-duty machining of steel parts. Optimized for shorter cycle times, the SVM Series improves acceleration/deceleration of the XYZ axes and spindle, reducing non-cutting time. With the largest machining envelope in its class, it offers enhanced versatility, featuring thermal displacement correction for the direct-drive spindle and user-friendly EZ work functions, making it ideal for handling a wide range of parts.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

DETAIL1918 https://youtu.be/DbhBVOtAJHc https://youtu.be/DbhBVOtAJHc

Travels

Travels - X Axis Travel distance (mm) 770
Travels - Y Axis Travel distance (mm) 410
Travels - Z Axis Travel distance (mm) 510
Travels - Z Axis Rapid Traverse (m/min) 36

Feed rates

Feed rate - X Axis Rapid Traverse 36
Feed rate - Y Axis Rapid Traverse 36

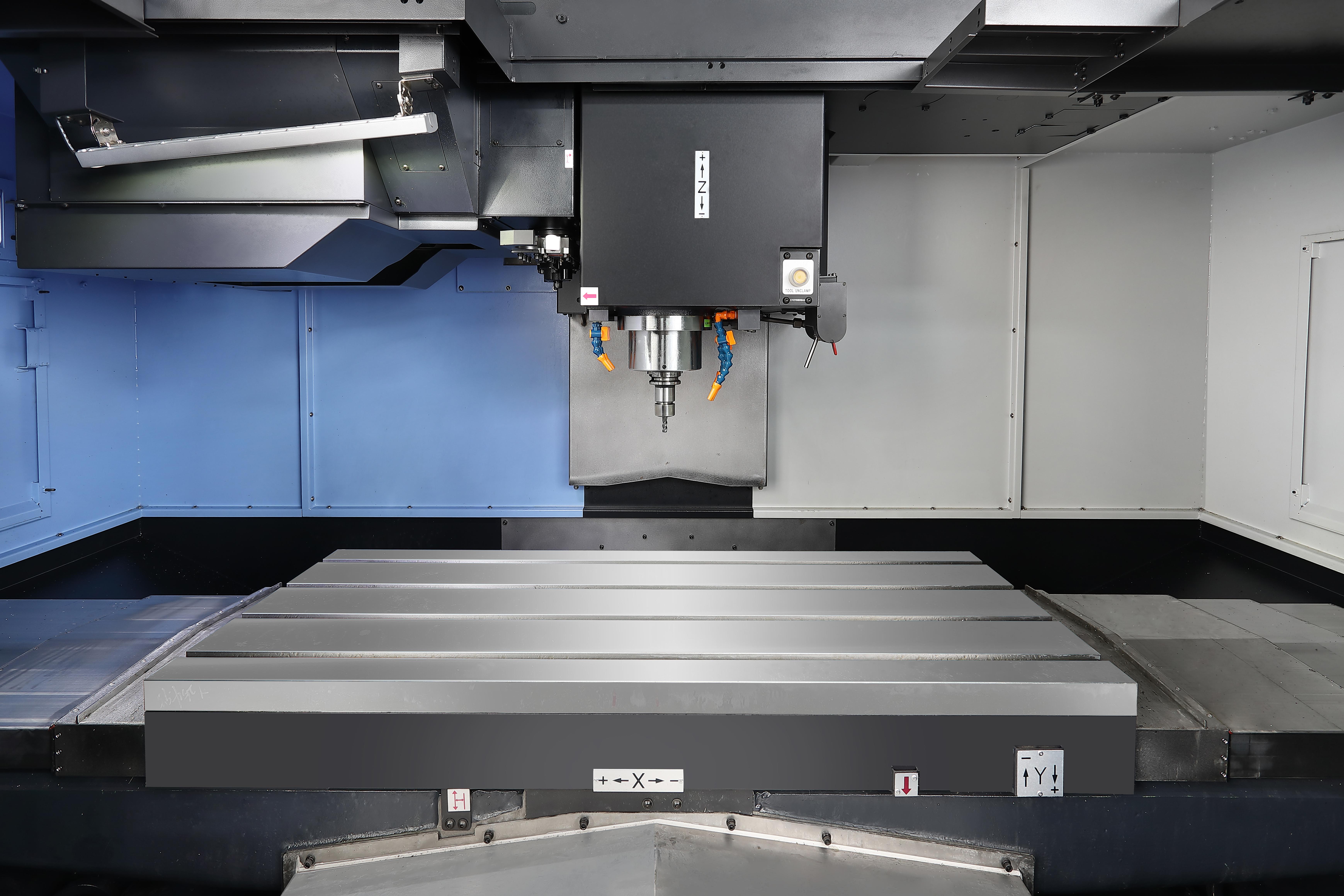

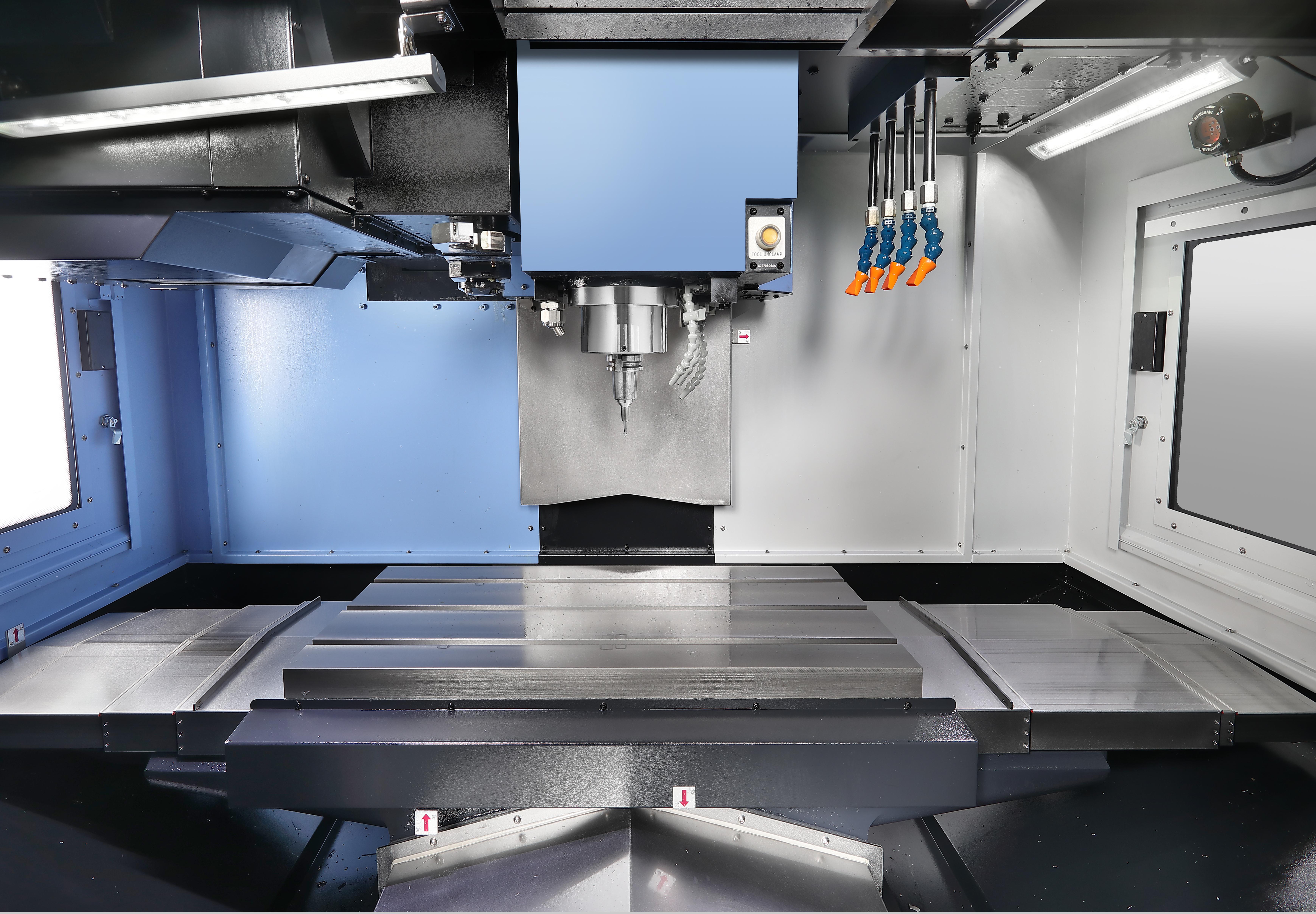

Table

Table Length (mm) 920
Table Width (mm) 410
Max. Workpiece weight (kg) 600

Workpiece capacity

Max. Workpiece Height (mm) 495
Max. Workpiece weight (kg) 600

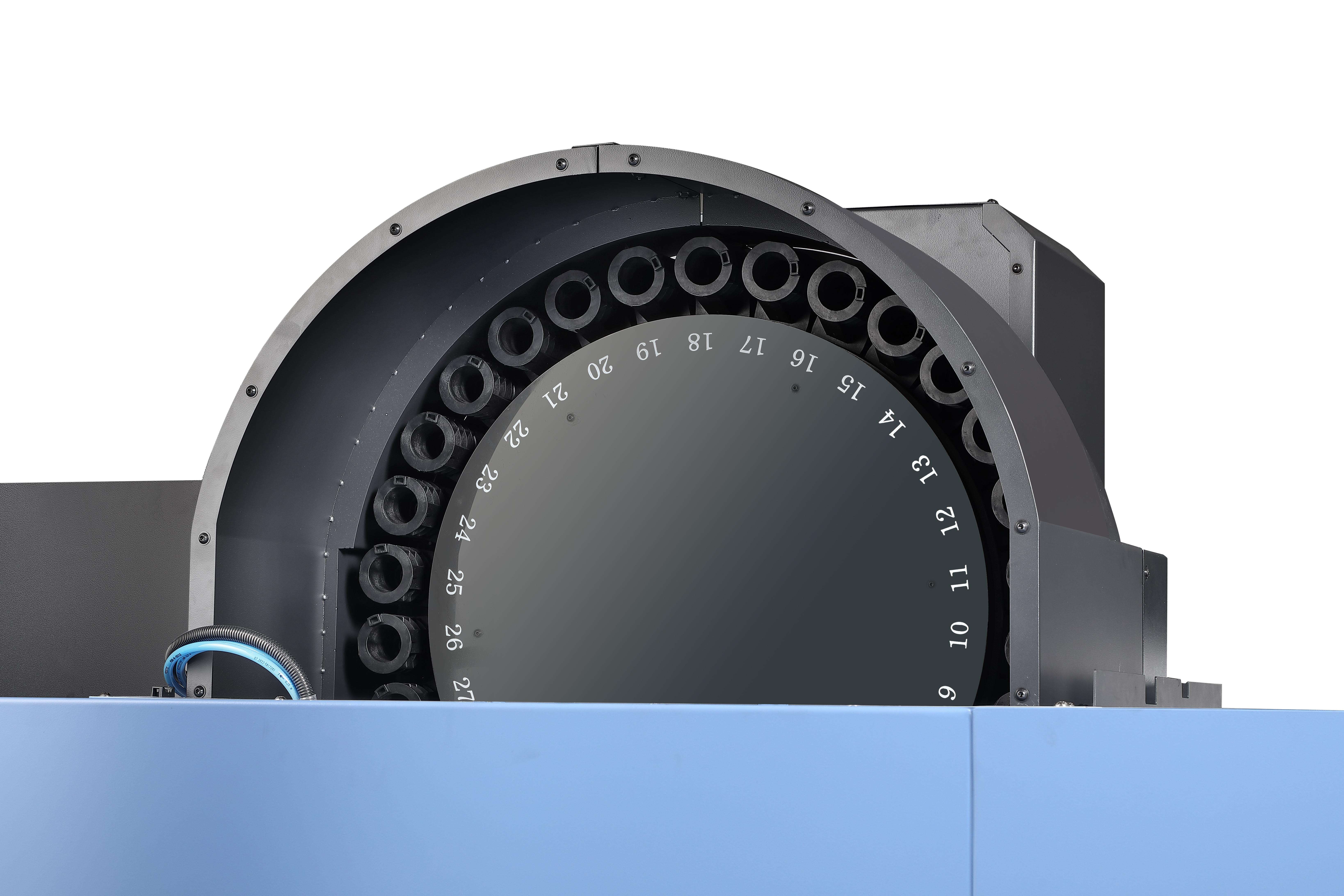

Tool storage capacity

Machining center - No. of tool station 30

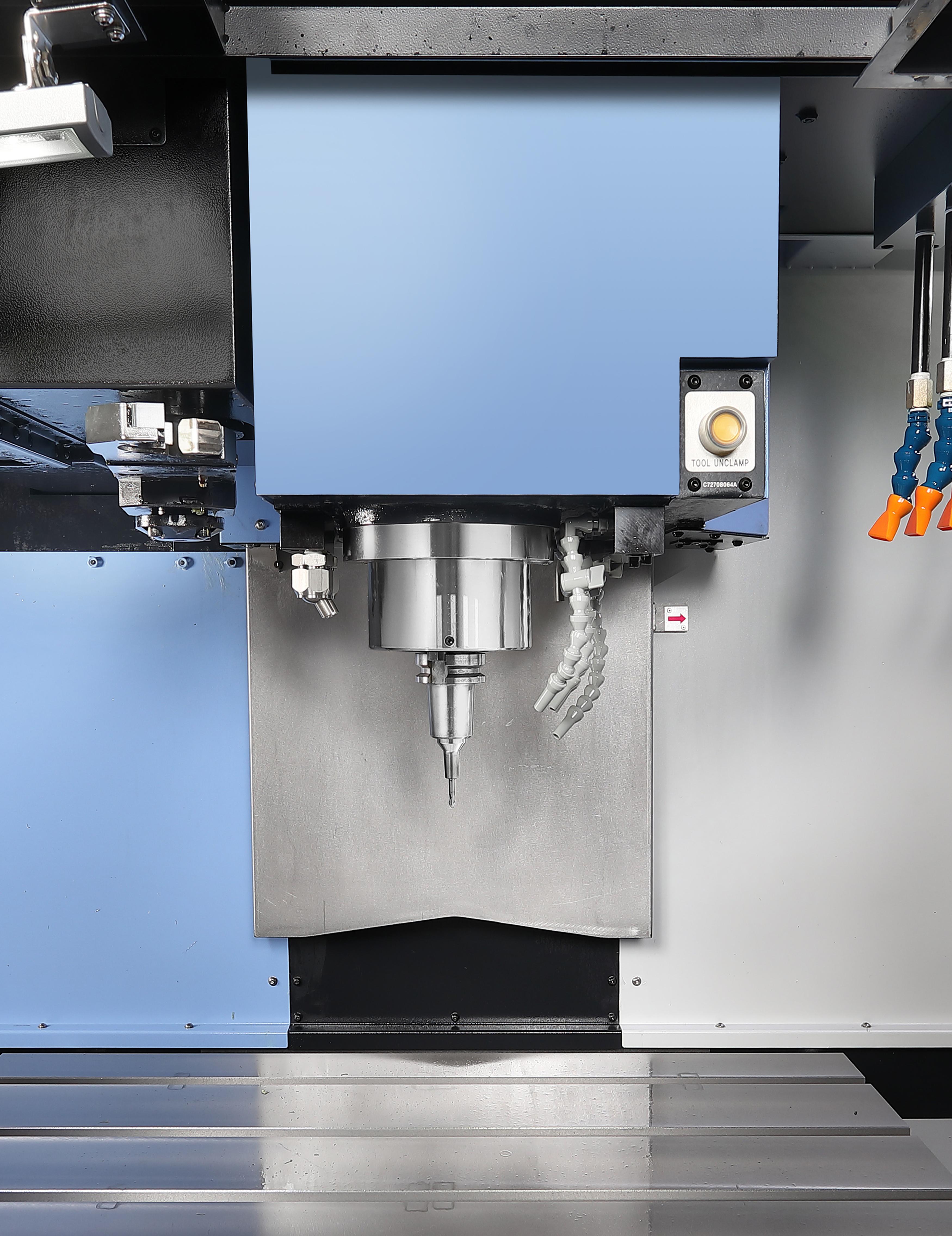

Main spindle

Main Spindle Max. Speed 12000
Main Spindle Max. Power 18.5
Main Spindle Max. Torque 95.5
Tool Taper (ISO)

Turret

Turret - No. of tool station 30

Dimensions

Length (mm) 2171
Height (mm) 2661
Width (mm) 2250
Weight (kg) 3850
  Name Download File type
SVM Series
SVM series.pdf 6136 KB
.pdf

The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
