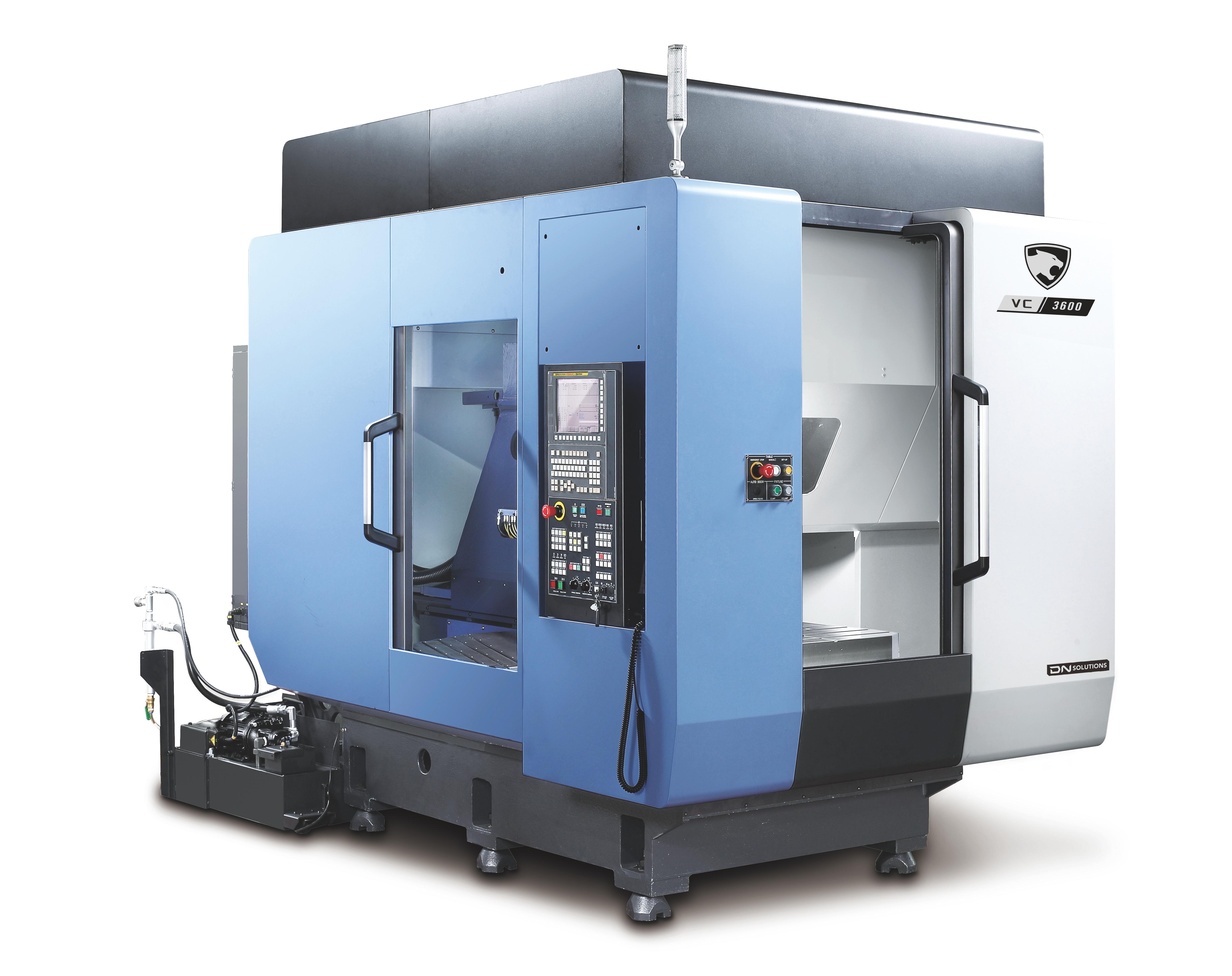

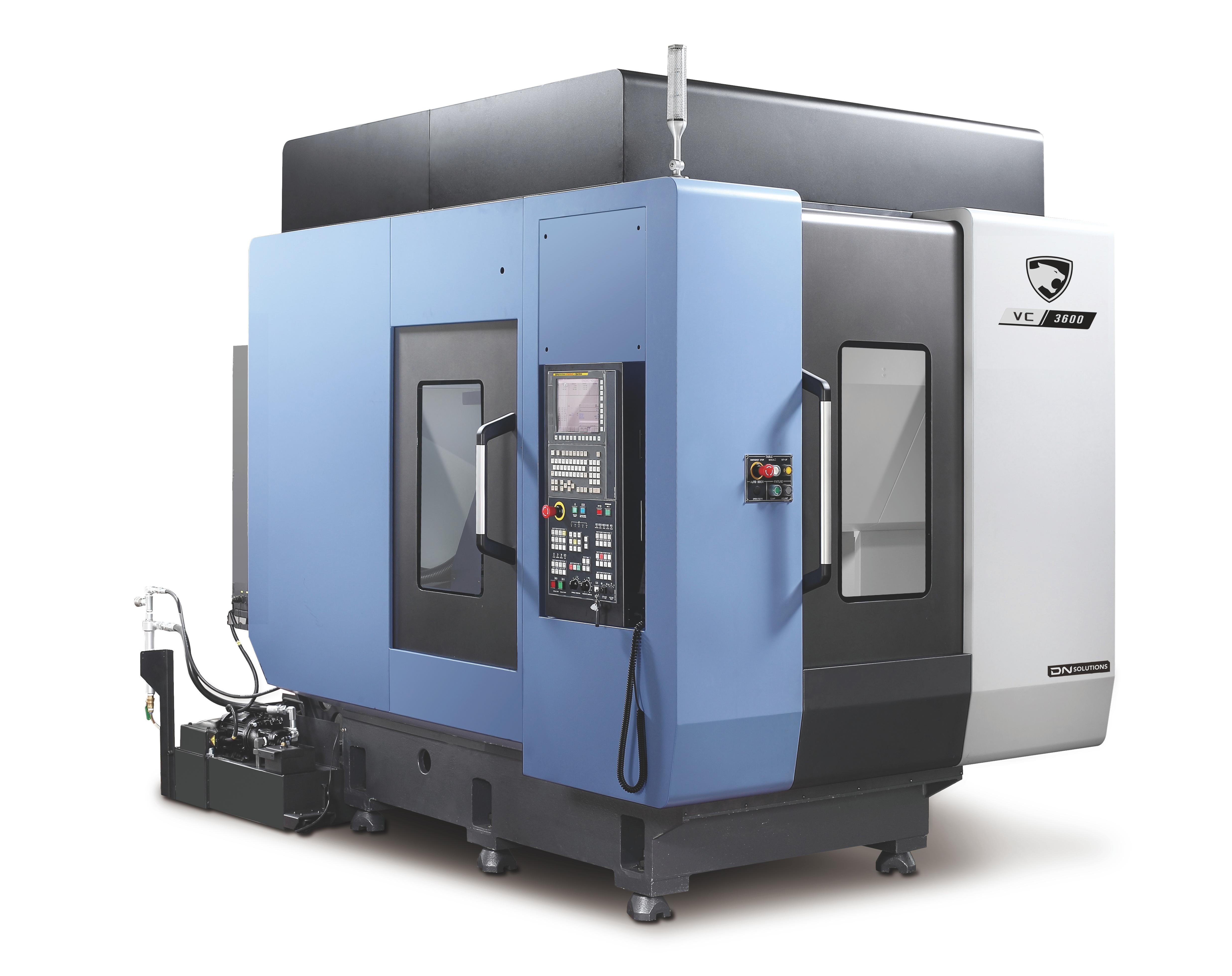

VC 3600/30 Series
- Enhanced Productivity: High-speed tapping centers and compact machining centers significantly reduce cycle times, boosting overall productivity.
- Versatile Performance: T Series machines handle both light and heavy-duty cutting with various spindle options and models, like the T4000L for larger parts.
- Advanced Reliability: Robust construction and simultaneous operation functions in models like the VC 3600/30 ensure consistent, reliable performance in demanding industries.
Highlights
- Travels - X Axis Travel distance (mm): 520
- Travels - Y Axis Travel distance (mm): 360
- Travels - Z Axis Travel distance (mm): 350
Compatible Control System
Series description
|
DN Solutions' T Series high-speed tapping centers offer exceptional cutting performance, significantly boosting customer productivity. These machines feature ample working envelopes, rapid X-, Y-, and Z-axis movements, and various spindle options tailored to meet diverse customer needs. Designed for reliability, the T Series handles both light and heavy-duty cutting with ease. For larger parts, the T4000L model provides an extended 700mm X-axis stroke. The VC 3600/30 is a compact, high-productivity machining center designed for the automotive and IT industries. It features a simultaneous operation function, allowing the rotary table to turn and all axes to position simultaneously during tool changes. Enhanced durability and reliability are achieved through a more rigid frame and advanced servo unit, making it ideal for demanding production environments. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 520 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 360 |
| Travels - Z Axis Travel distance (mm) | 350 |
| Travels - Z Axis Rapid Traverse (m/min) | 56 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 48 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 48 |

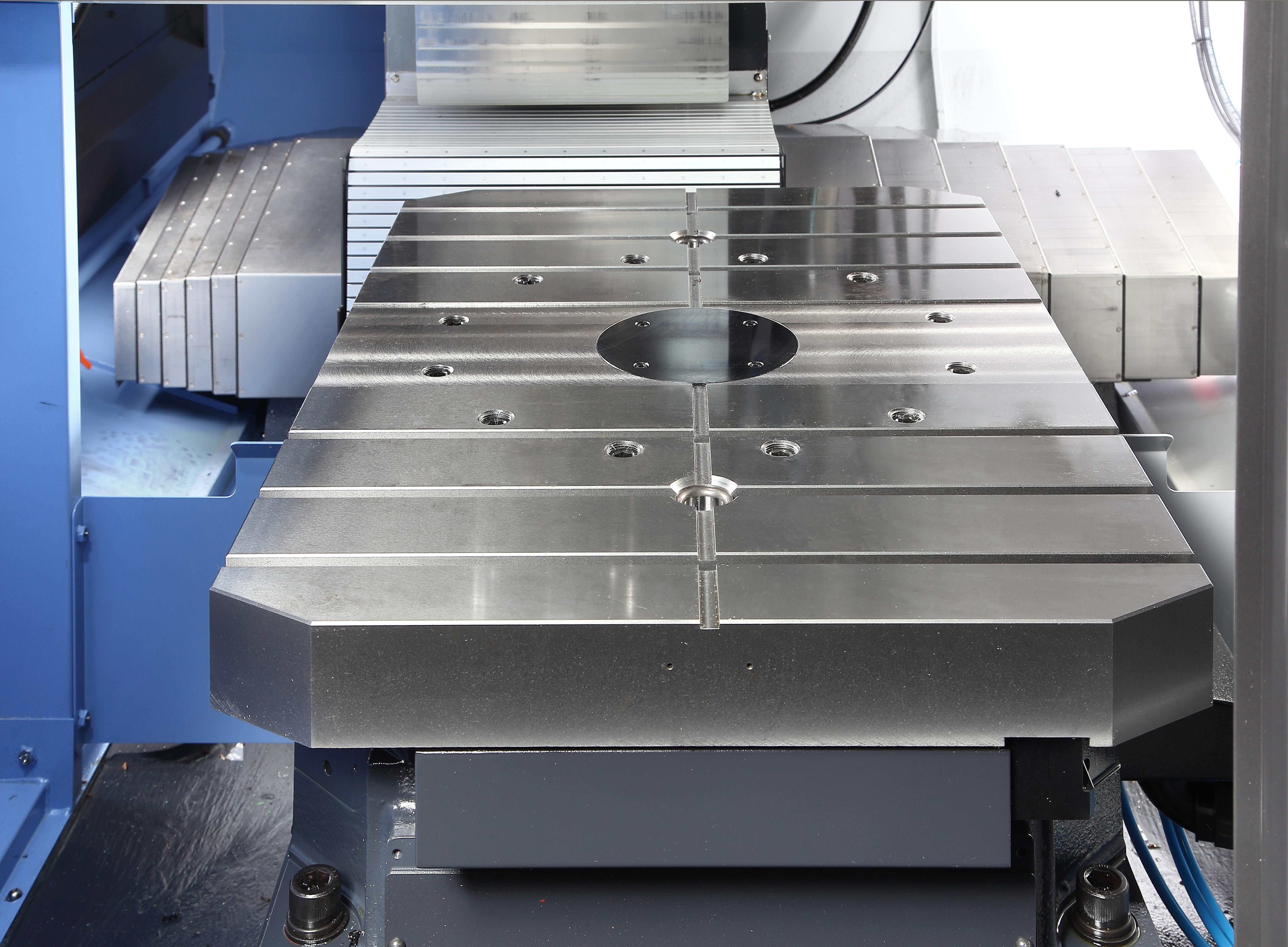

Table
| Table Length (mm) | 650 |
|---|---|
| Table Width (mm) | 375 |
| Max. Workpiece weight (kg) | 200+200 |
| Pallet Size (mm) | 650x375 |
| Max. Table weight (kg) | 400 |
Workpiece capacity
| Max. Workpiece Height (mm) | 300 |
|---|---|
| Max. Workpiece weight (kg) | 200+200 |

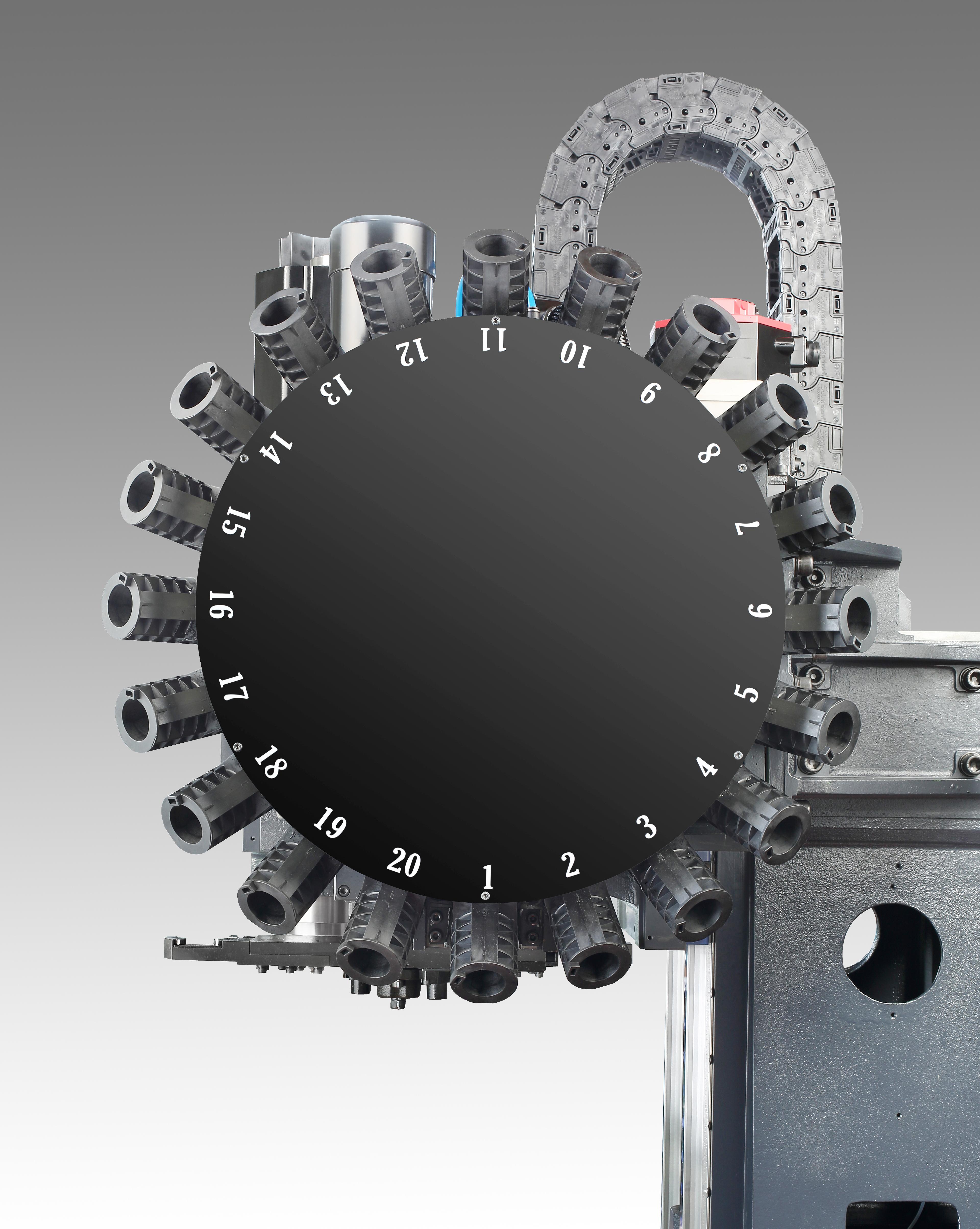

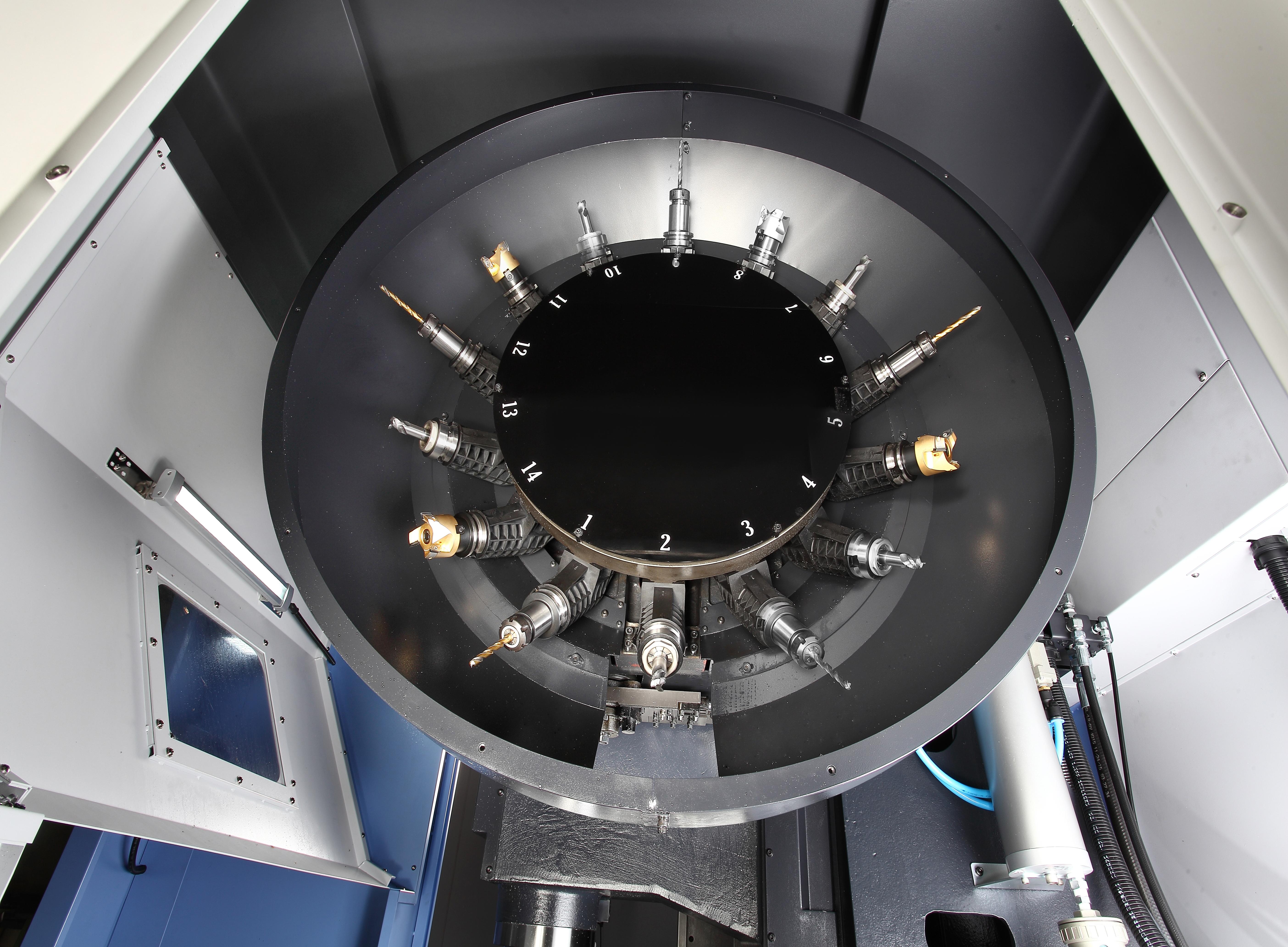

Tool storage capacity
| Machining center - No. of tool station | 14 |
|---|

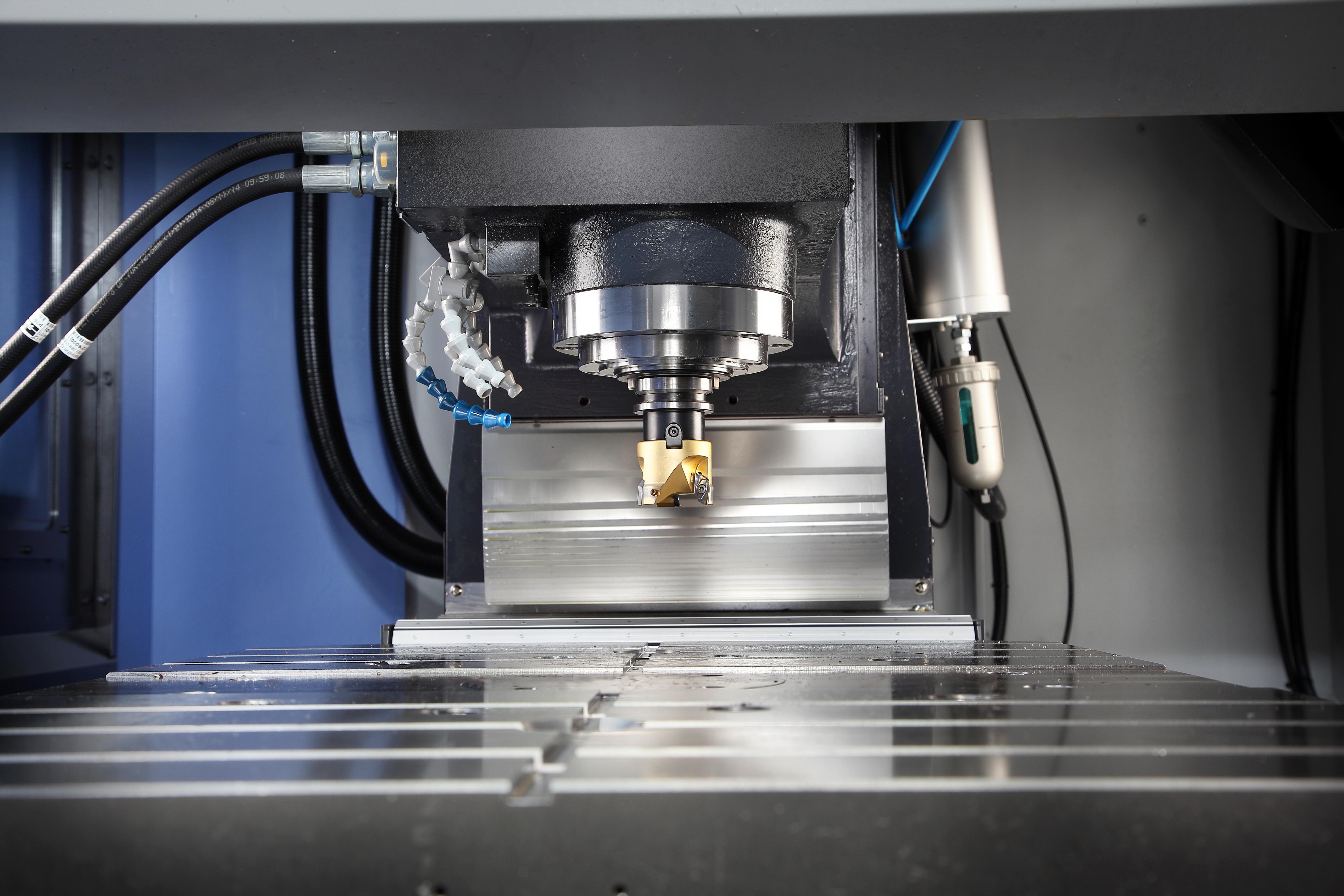

Main spindle
| Main Spindle Max. Speed | 12000 |
|---|---|
| Main Spindle Max. Power | 13 |
| Main Spindle Max. Torque | 82.7 |
| Tool Taper (ISO) |
Turret
| Turret - No. of tool station | 14 |
|---|
Dimensions
| Length (mm) | 3684 |
|---|---|
| Height (mm) | 2552 |
| Width (mm) | 1729 |
| Weight (kg) | 5200 |
| Name | Download | File type | |
|---|---|---|---|
|
VC 3600_30 .pdf | 3993 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
