VCF 5500 Series
- Versatile Machining: Both the VCF 5500 and VCF 850II Series are designed for a wide range of applications, from EV frames to complex parts.
- Enhanced Productivity: Optional features like rotary tables and center partitions maximize efficiency and output, especially for long-shaped parts.
- Improved Cutting Performance: The VCF 850II Series offers high-rigidity B-axes for greater cutting precision and flexibility in demanding tasks.
Highlights
- Travels - X Axis Travel distance (mm): 5000
- Travels - Y Axis Travel distance (mm): 550
- Travels - Z Axis Travel distance (mm): 570
Compatible Control System
Series description

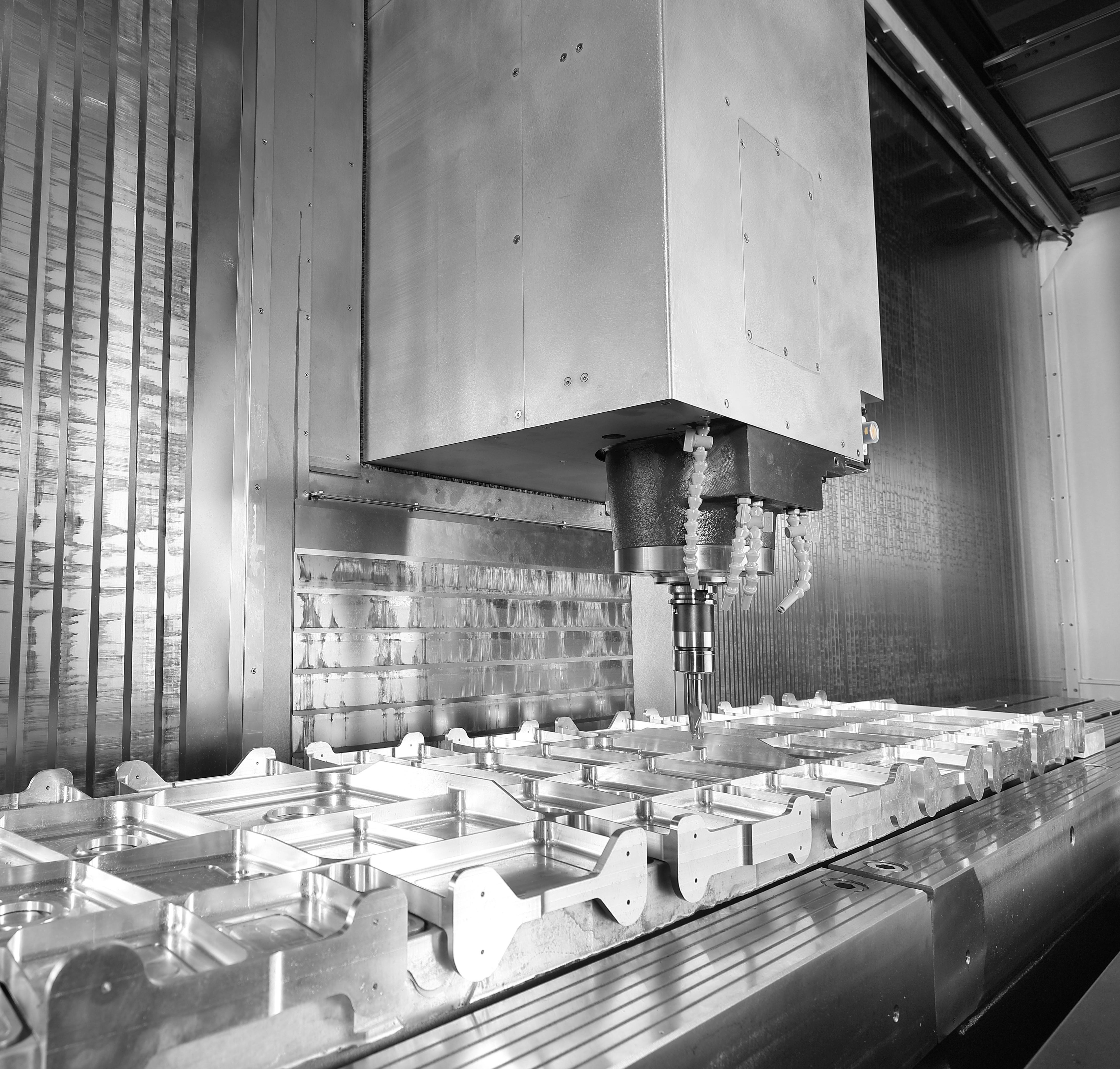

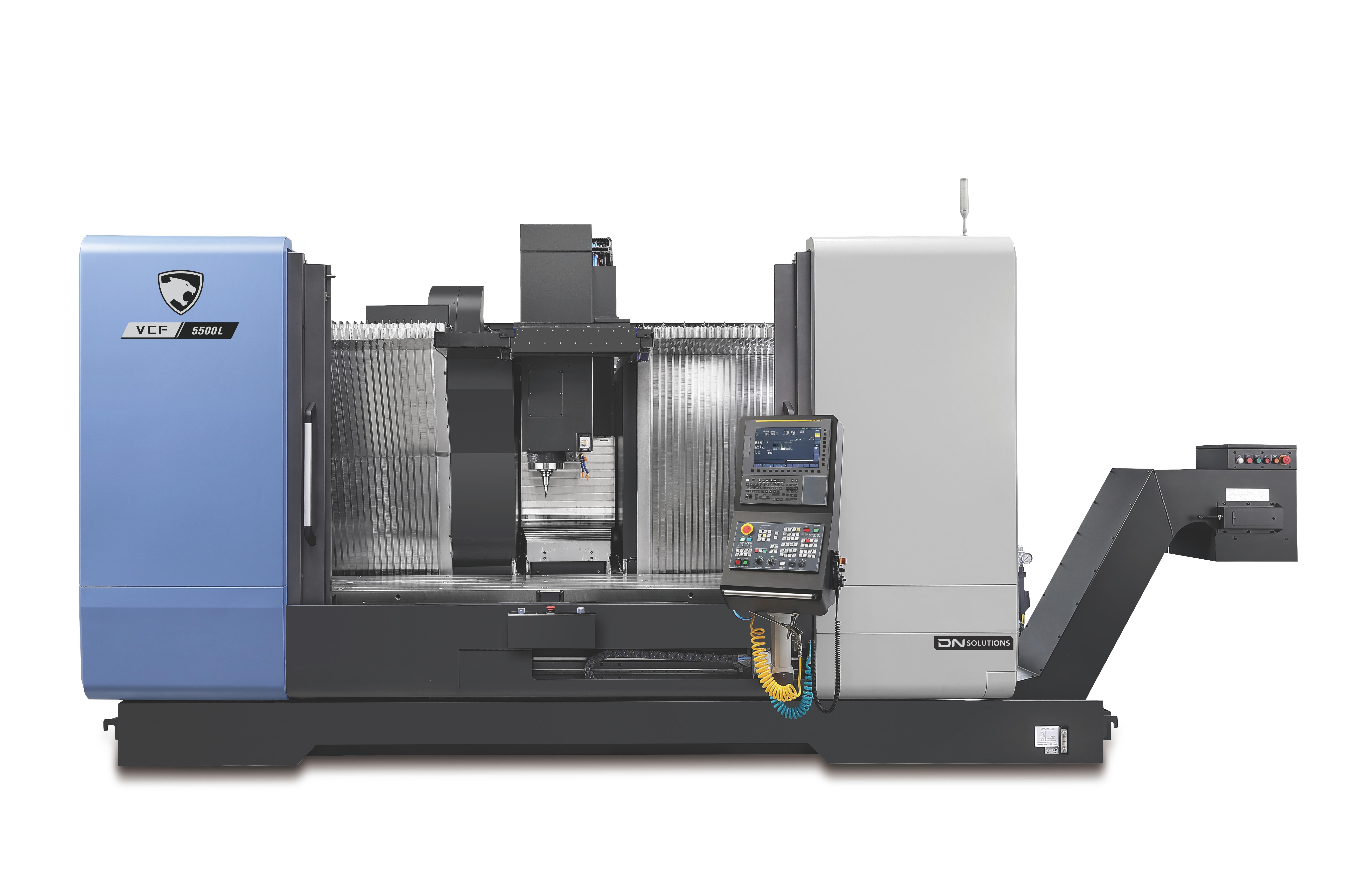

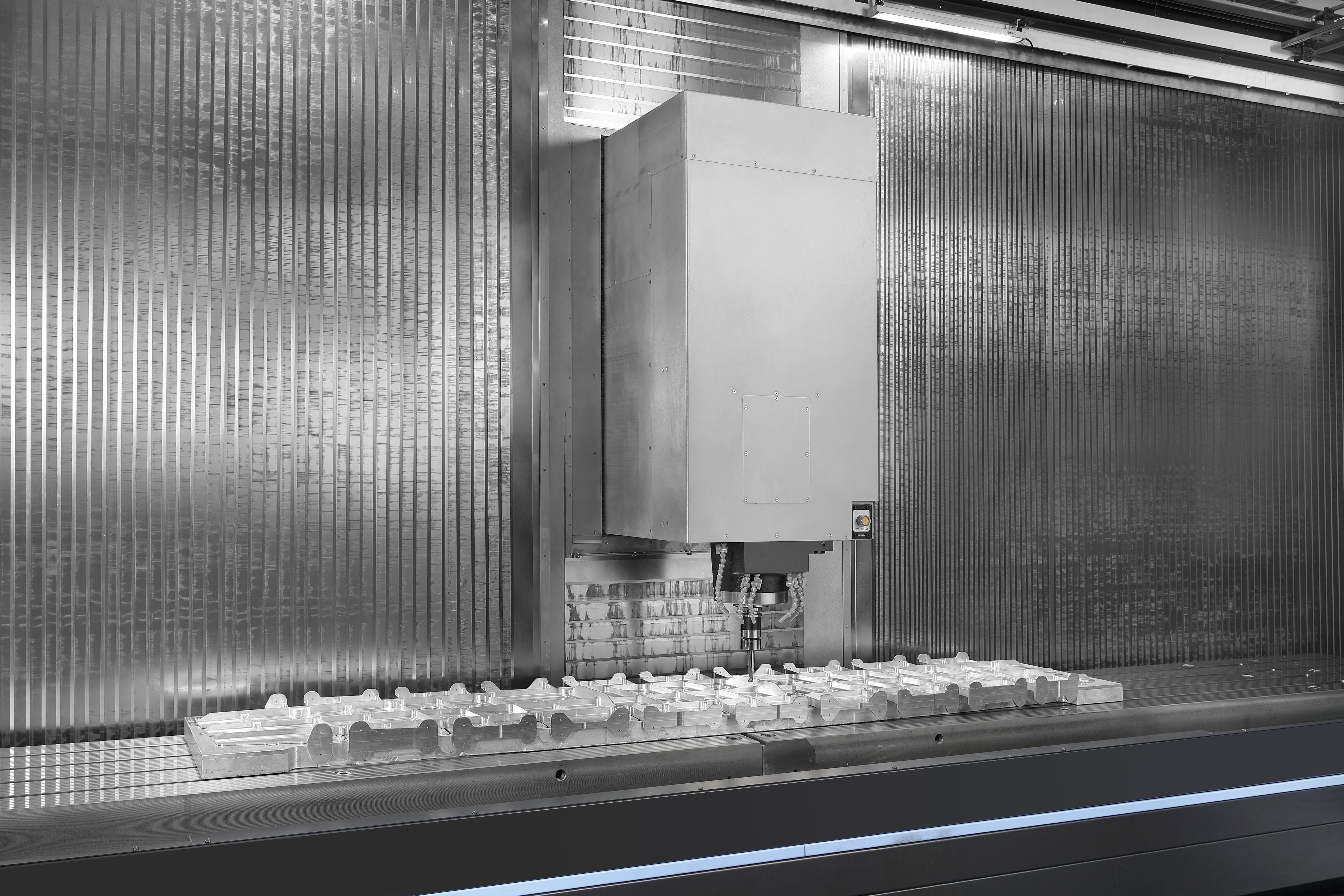

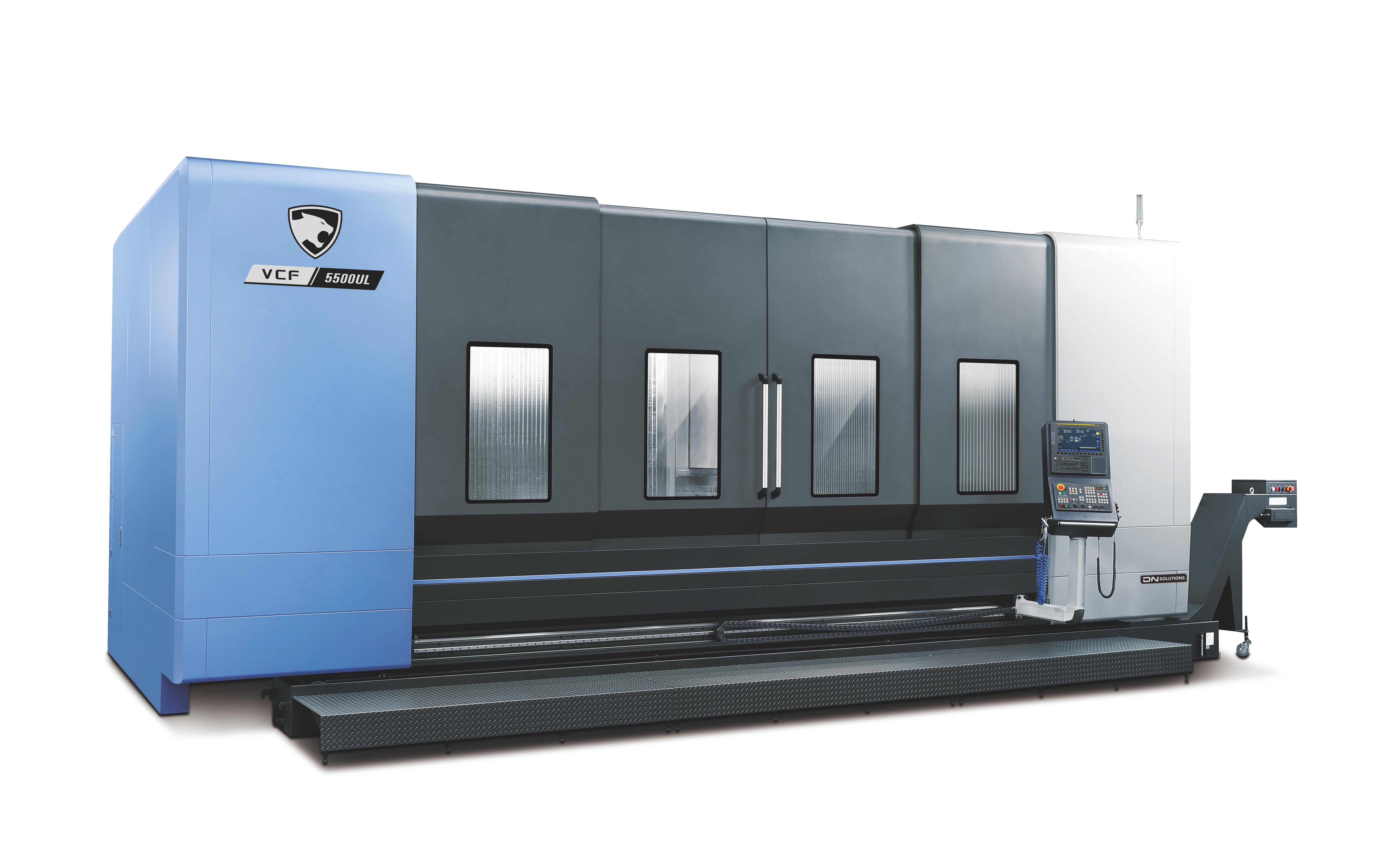

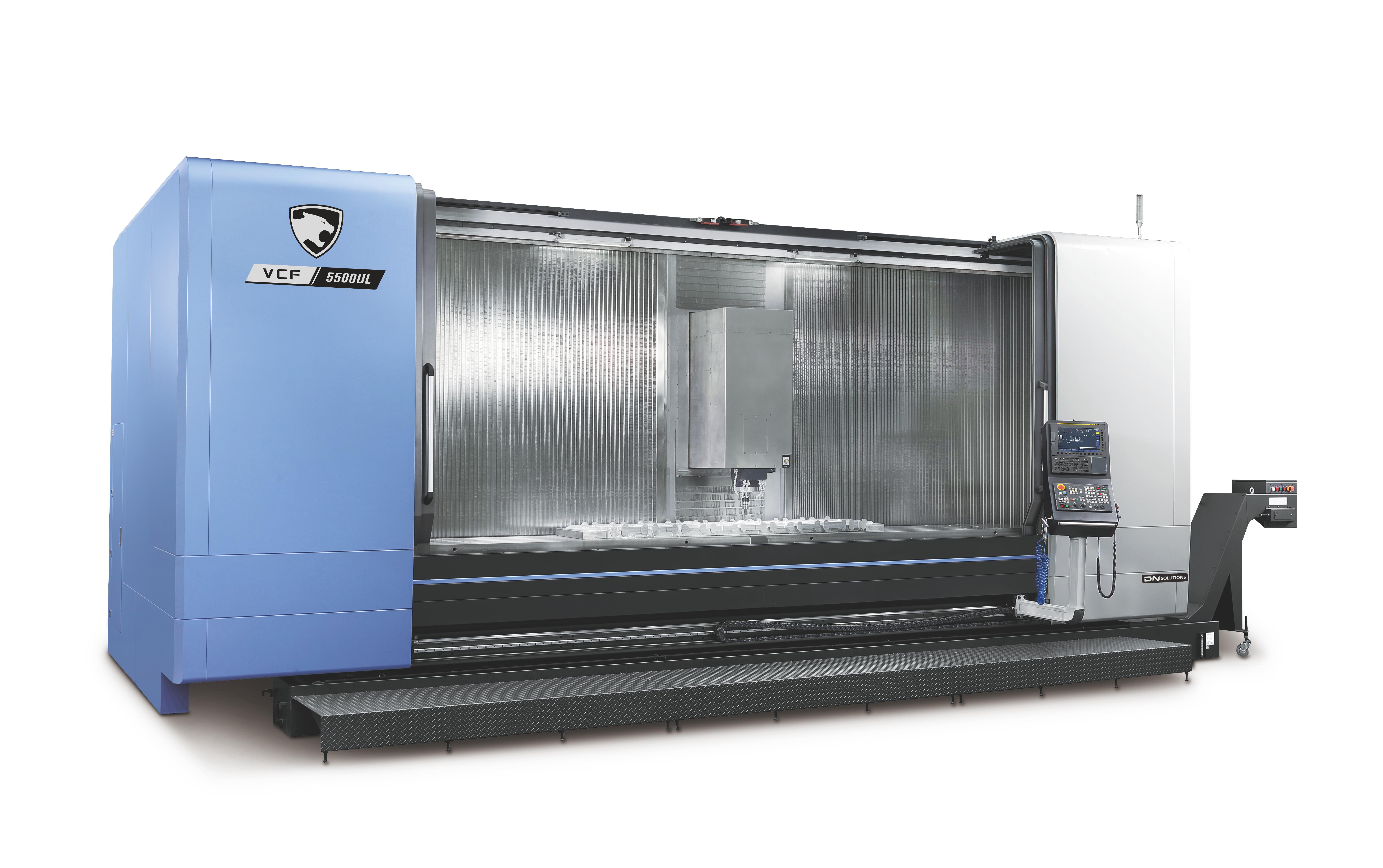

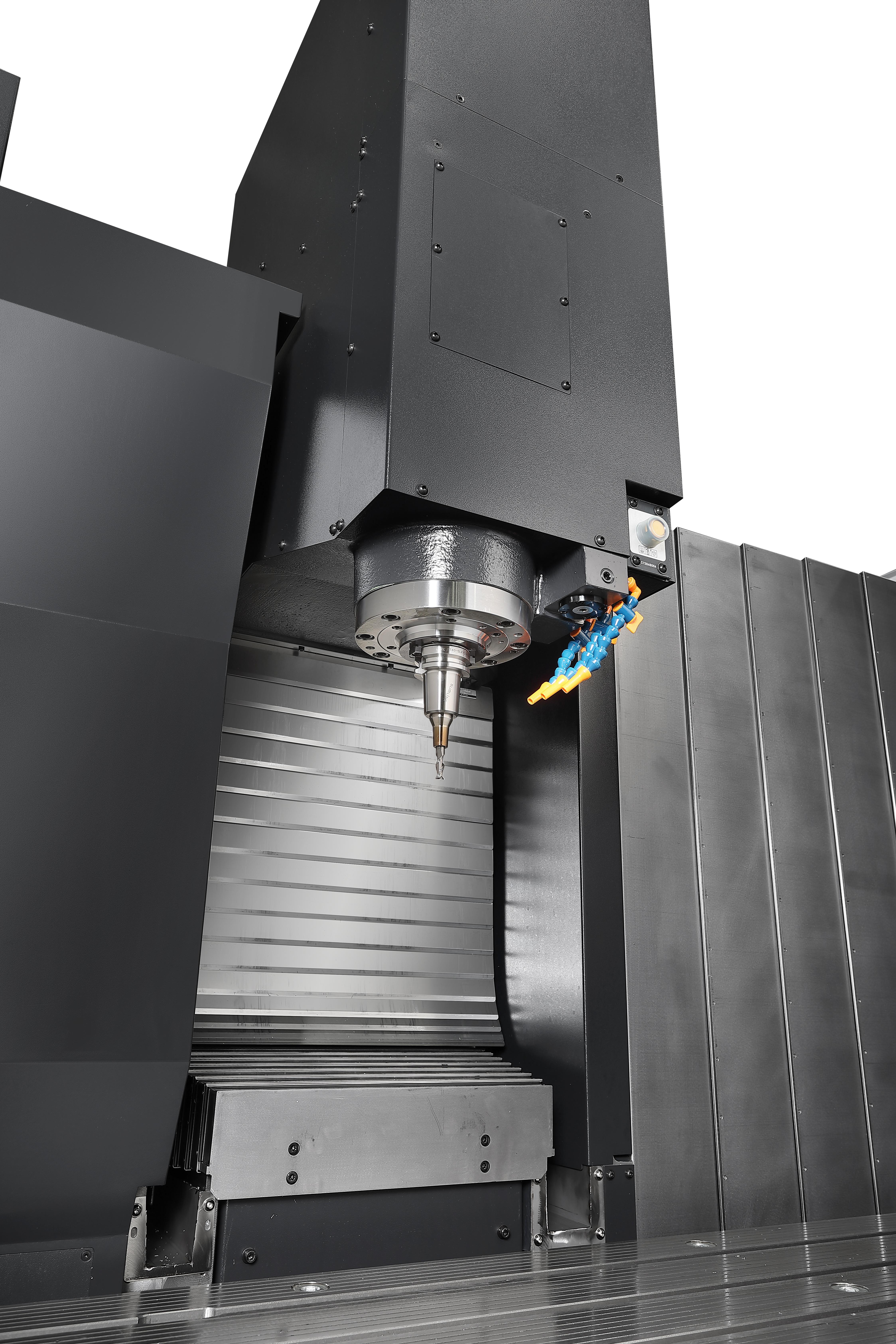

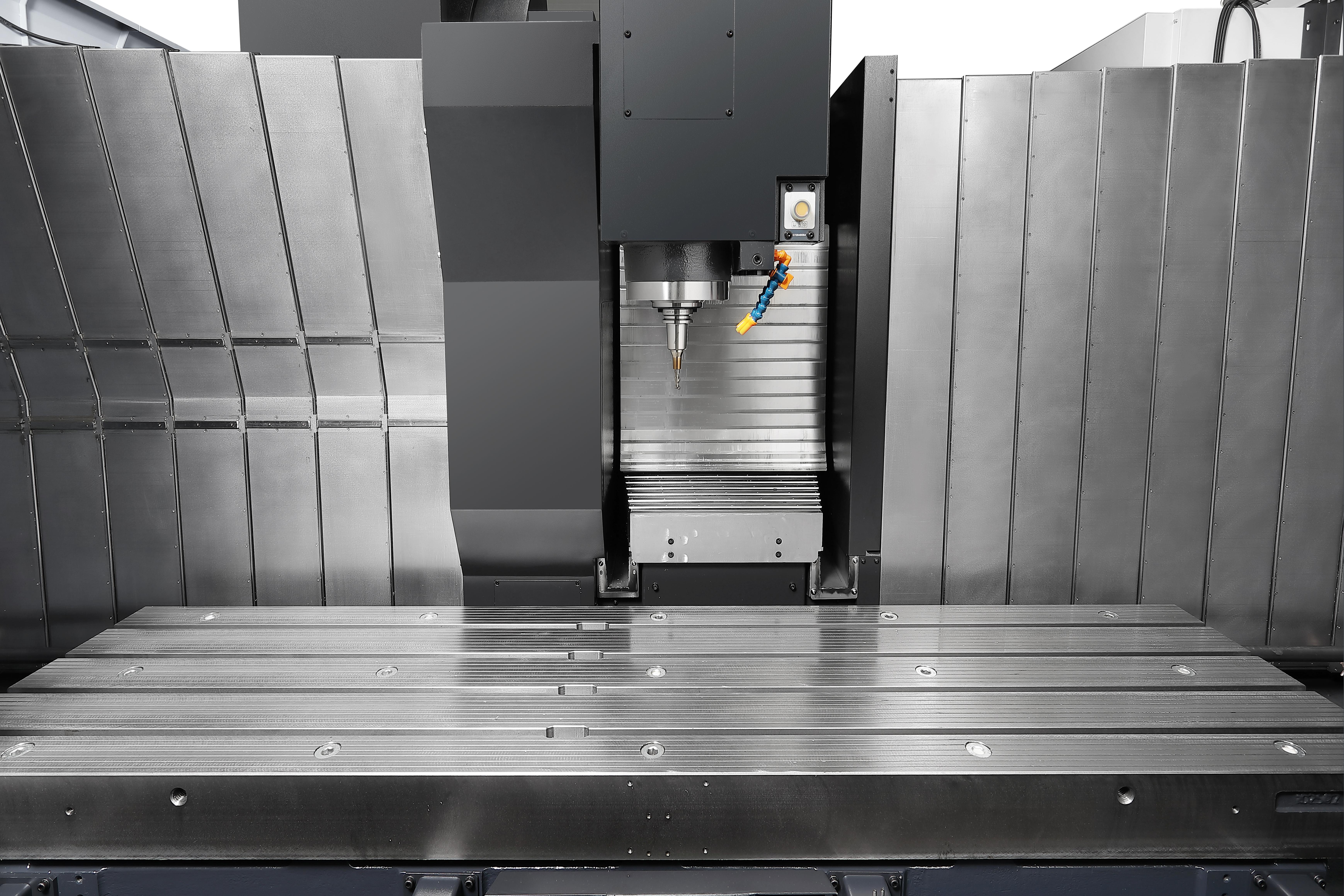

The VCF 5500 and VCF 850II Series are versatile, multi-purpose moving column vertical machining centers designed to handle a wide range of applications. The VCF 5500L/UL/SL models feature fixed tables and an optional center partition for enhanced productivity, making them ideal for machining long-shaped parts, such as EV frames and battery systems, with rotary tables for lengths up to 2.2 meters. The VCF 850II Series, an upgraded line, offers high-rigidity and durable B-axes, delivering improved cutting performance and machining flexibility. With a 3-meter X-axis, these machines can further enhance productivity with options like rotary tables and center partitions, making them suitable for diverse machining tasks. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
Travels - X Axis Travel distance (mm) | 5000 |
---|---|
Travels - Y Axis Travel distance (mm) | 550 |
Travels - Z Axis Travel distance (mm) | 570 |
Travels - Z Axis Rapid Traverse (m/min) | 46 |
Feed rates
Feed rate - X Axis Rapid Traverse | 30 |
---|---|
Feed rate - Y Axis Rapid Traverse | 36 |
Table
Table Length (mm) | 5600 |
---|---|
Table Width (mm) | 580 |
Max. Workpiece weight (kg) | 6000 |
Workpiece capacity
Max. Workpiece Diameter (mm) | 580 |
---|---|
Max. Workpiece Height (mm) | 600 |
Max. Workpiece weight (kg) | 6000 |
Tool storage capacity
Machining center - No. of tool station | 35 |
---|
Main spindle
Main Spindle Max. Speed | 12000 |
---|---|
Main Spindle Max. Power | 18.5 |
Main Spindle Max. Torque | 117.8 |
Tool Taper (ISO) |
Turret
Turret - No. of tool station | 35 |
---|
Dimensions
Length (mm) | 8410 |
---|---|
Height (mm) | 3420 |
Width (mm) | 3571 |
Weight (kg) | 23000 |
Name | Download | File type | |
---|---|---|---|
|
VCR_VCF 5500 series.pdf | 5611 KB |
Series delivery and installation
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
