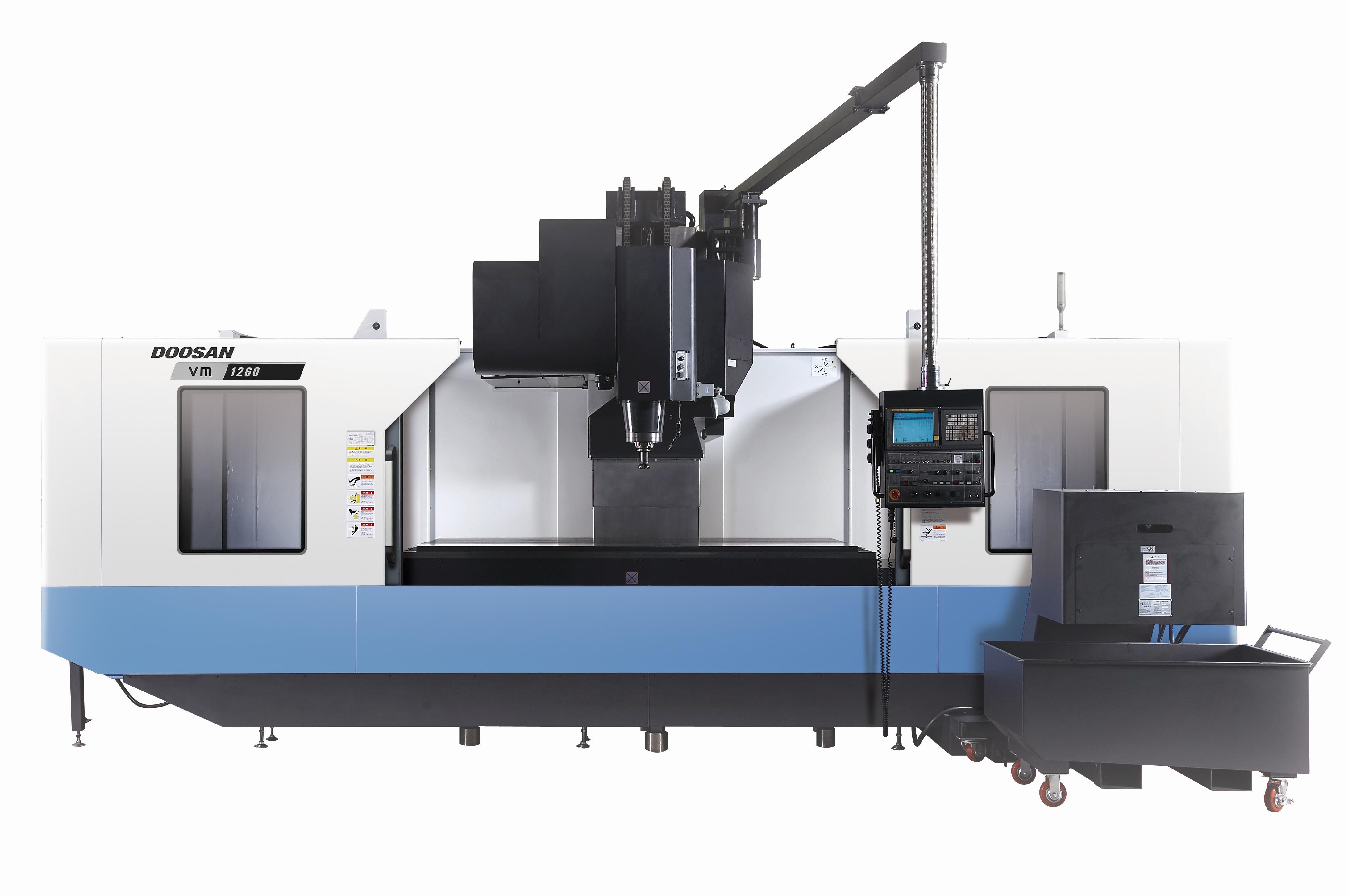

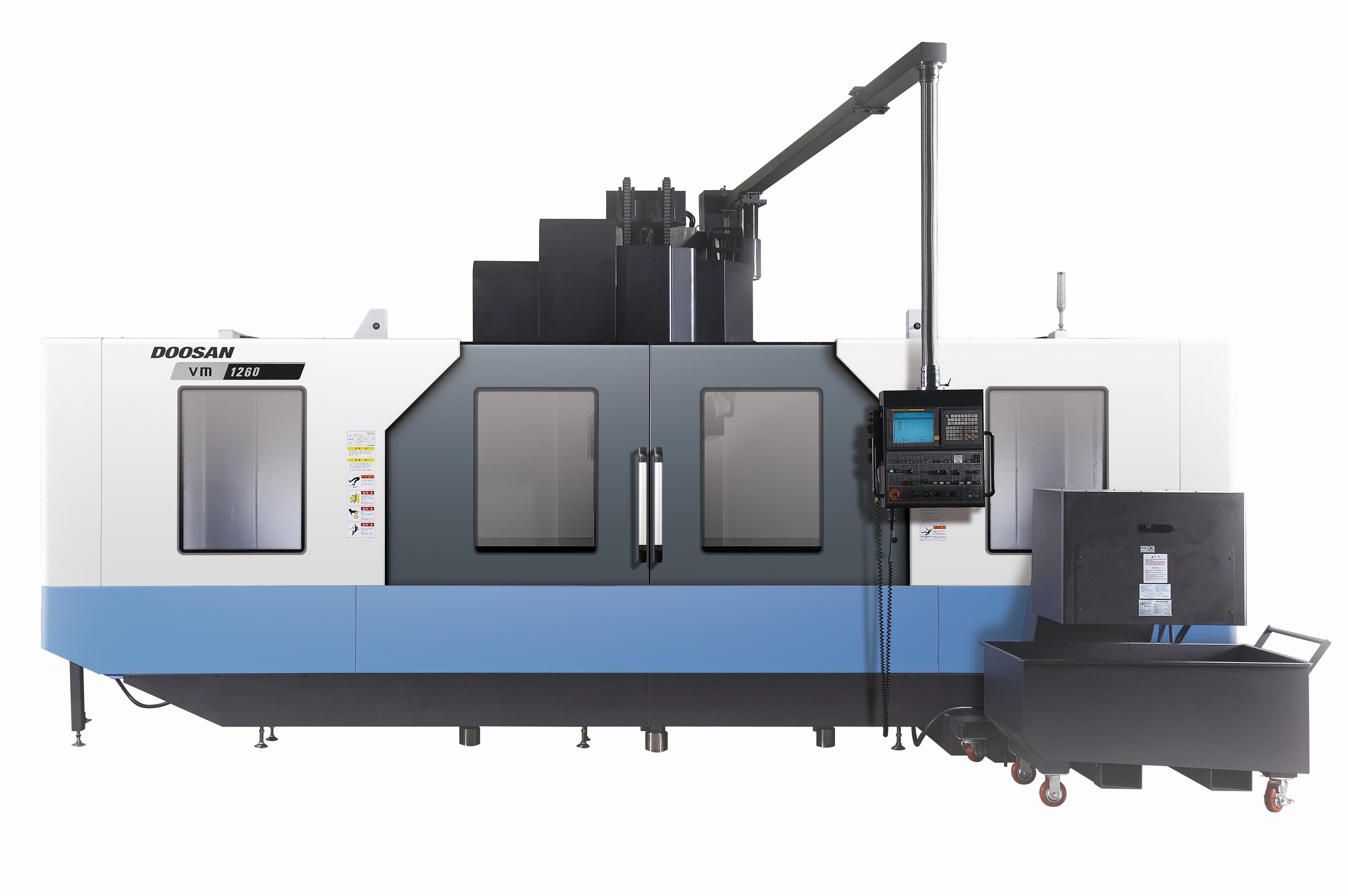

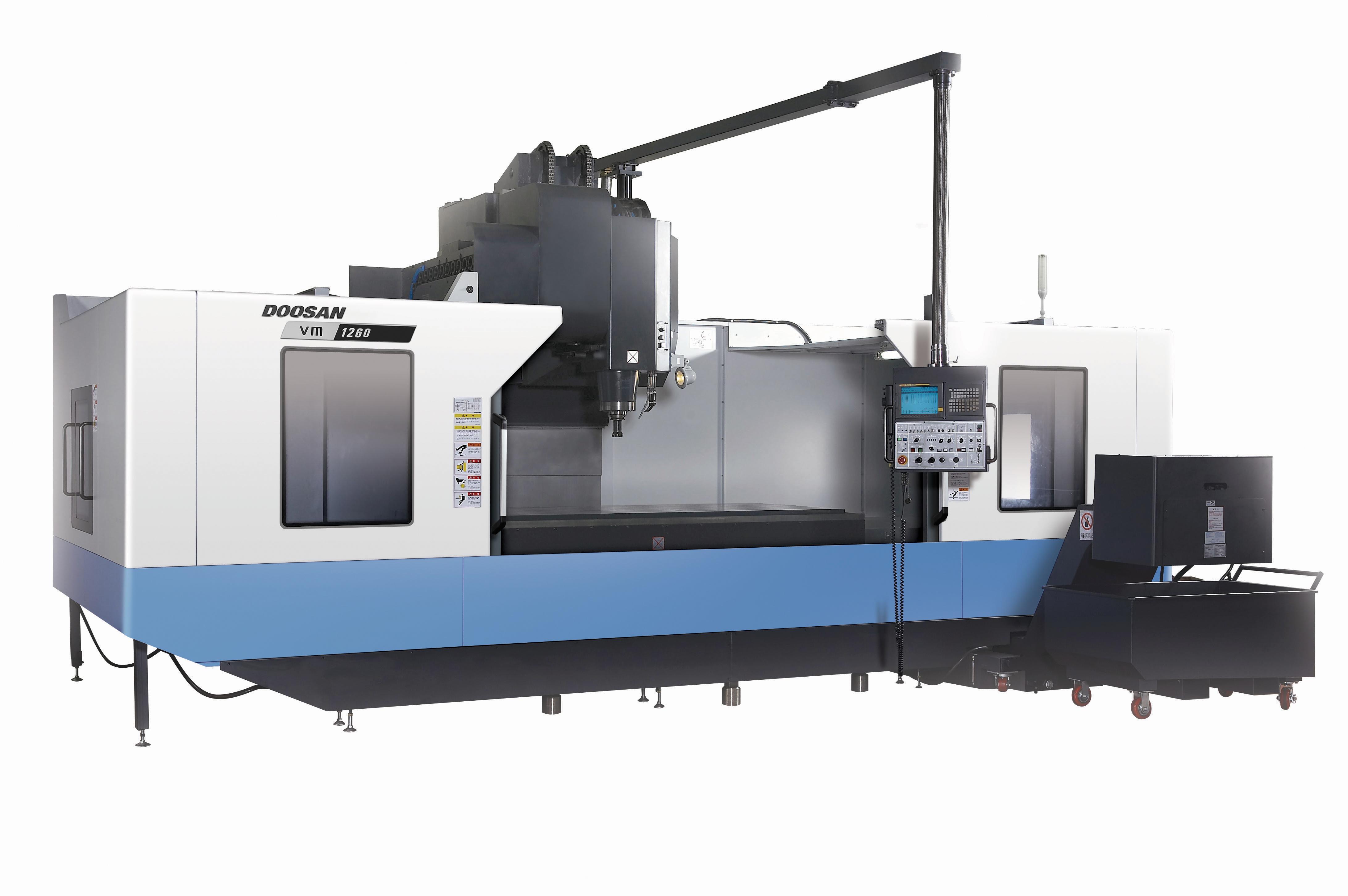

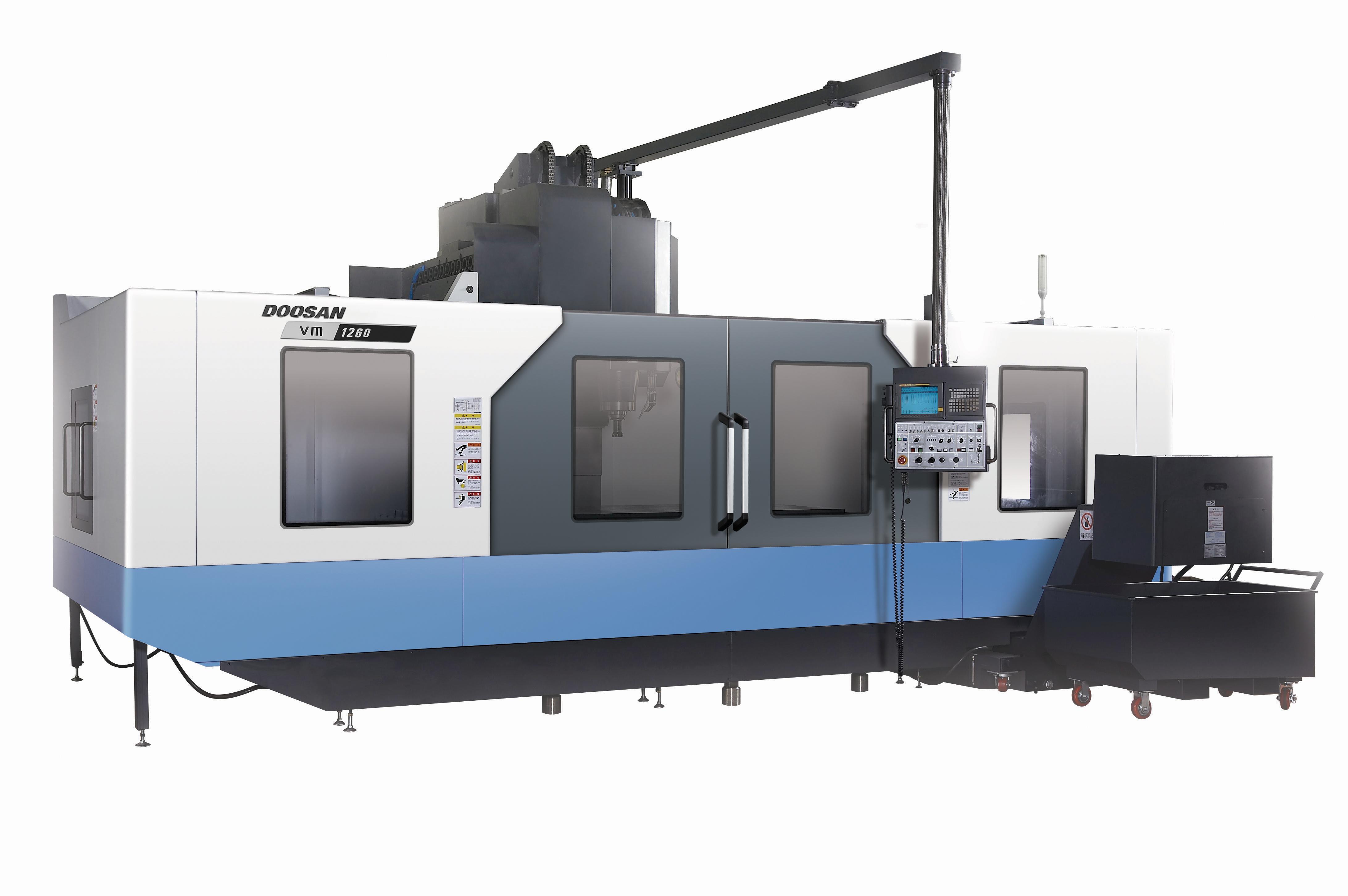

VM 1260 Series

LARGE, HIGH-SPEED, HIGH-PRECISION MACHINING CENTER

  • Versatile Performance: Designed for both roughing and finishing, with a range of sizes to suit various machining needs.
  • Enhanced Productivity: Low-vibration spindles and user-friendly design improve efficiency and operational convenience.
  • High-Quality Output: Standard features like the BBT40 spindle, effective cooling, and chip removal ensure superior die and mold production.

Highlights

  • Travels - X Axis Travel distance (mm): 2500
  • Travels - Y Axis Travel distance (mm): 1260
  • Travels - Z Axis Travel distance (mm): 900

Compatible Control System

    Fanuc

Series description

The VM 750/960/1260 and VM 5400/6500 Series are advanced vertical machining centers featuring low-vibration built-in spindles and the highest stroke in their class. Designed for both roughing and finishing operations, these machines offer a wide range of sizes from Unit 7 to Unit 12. The new design enhances operator convenience and work efficiency, boosting productivity and creating added value.

Key features, such as the face/taper contact spindle nose (BBT40), an effective spindle cooling system, and an air blower for chip removal during dry cutting, are standard. These features optimize efficiency and competitiveness, making the VM Series ideal for producing high-quality dies and molds.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

Travels

Travels - X Axis Travel distance (mm) 2500
Travels - Y Axis Travel distance (mm) 1260
Travels - Z Axis Travel distance (mm) 900

Feed rates

Feed rate - X Axis Rapid Traverse 12
Feed rate - Y Axis Rapid Traverse 12
Feed rate - Z Axis Rapid Traverse 12

Table

Table Length (mm) 2800
Table Width (mm) 1260
Max. Workpiece weight (kg) 8000

Workpiece capacity

Max. Workpiece Height (mm) 1040
Max. Workpiece weight (kg) 8000

Tool storage capacity

Machining center - No. of tool station 40

Main spindle

Main Spindle Max. Speed 6000
Main Spindle Max. Power 18.5
Main Spindle Max. Torque 698.8
Tool Taper (ISO) 50

Turret

Turret - No. of tool station 40

Dimensions

Length (mm) 5645
Height (mm) 3930
Width (mm) 6938
Weight (kg) 31000
  Name Download File type
VM 1260 Series
VM series.pdf 4323 KB
