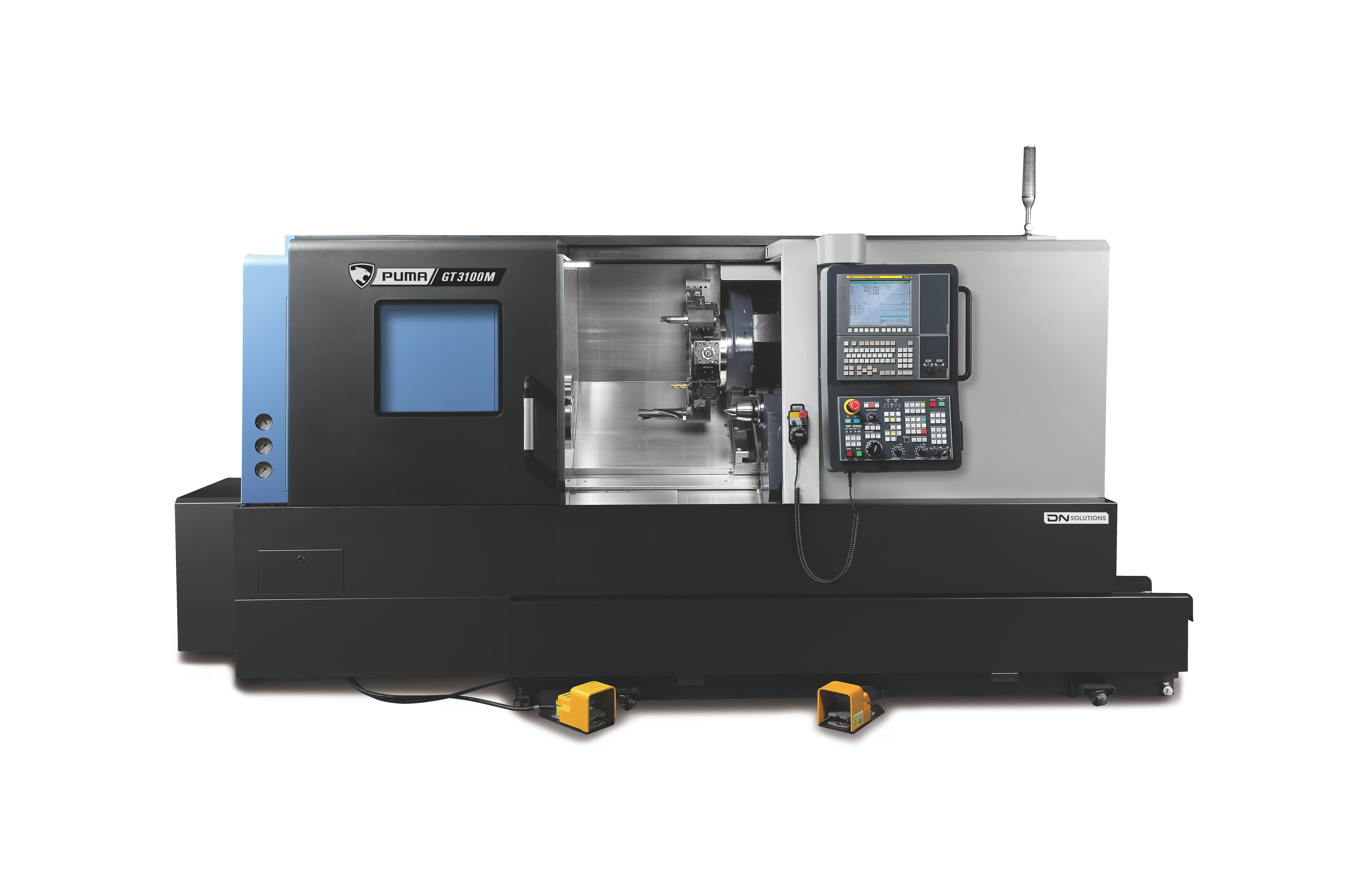

PUMA GT3100 Series

8/10/12 INCH GLOBAL STANDARD TURNING CENTER

  • Unmatched Spindle Power: The series offers the most powerful spindle in its class, delivering superior machining capabilities.
  • Precise and Efficient Machining: The innovative tool post design ensures accurate and efficient cutting, boosting overall productivity.
  • User-Centric Design: Focuses on convenient operation and easy maintenance, enhancing operator comfort and minimizing downtime.

Highlights

  • Travels - X Axis Travel distance (mm): 260
  • Travels - Z Axis Travel distance (mm): 1350
  • Chuck size (mm): 304.8
  • Max. Turning Diameter (mm): 481
  • Max. Turning Length (mm): 1275

Compatible Control System

    Fanuc

Series description

The PUMA GT Series comprises turning centers with 8, 10, and 12-inch chuck sizes, setting new global standards for performance. Featuring the most powerful spindle in their class and an innovative tool post design, these machines ensure powerful, precise machining and exceptional productivity. The GT Series is designed for user-friendly operation and easy maintenance, making it ideal for high-efficiency machining tasks.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

Travels

Travels - X Axis Travel distance (mm) 260
Travels - Z Axis Travel distance (mm) 1350
Travels - X Axis Rapid Traverse (m/min) 24
Travels - Z Axis Rapid Traverse (m/min) 30

Tool storage capacity

Machining center - No. of tool station 12

Capacity

Chuck size (mm) 304.8
Max. Turning Diameter (mm) 481
Max. Turning Length (mm) 1275
Bar Capacity (mm) 81

Main spindle

Main Spindle Max. Speed 2800
Main Spindle Max. Power 35
Main Spindle Max. Torque 1613

Turret

Turret - No. of tool station 12

Dimensions

Length (mm) 4636
Height (mm) 2110
Width (mm) 2325
Weight (kg) 6900
  Name Download File type
PUMA GT3100 Series
PUMA_GT3100_catalog.pdf 6131 KB
.pdf

The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
