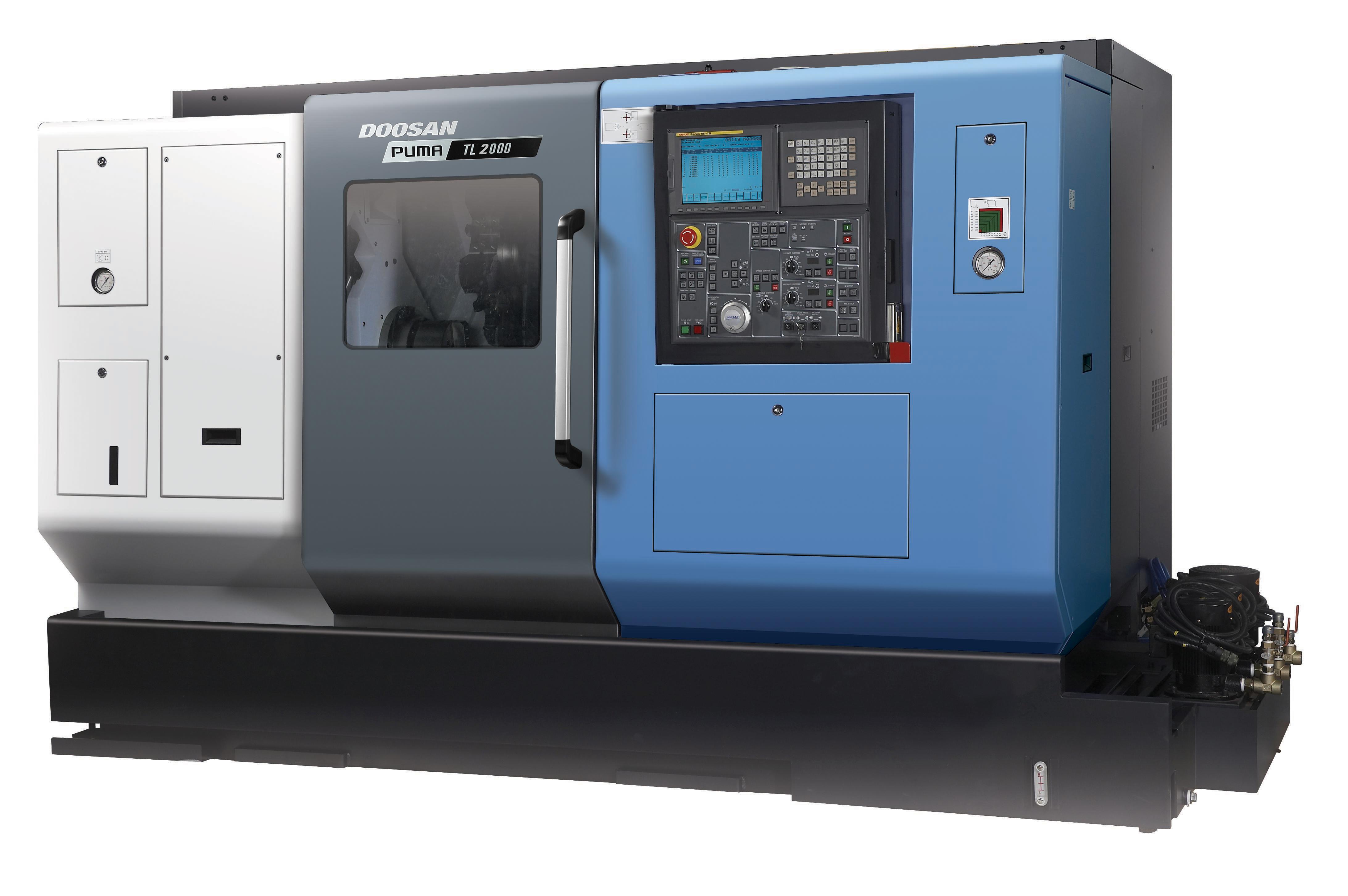

PUMA TL Series
- High Efficiency: The PUMA TL series is engineered to maximize productivity through highly efficient machining processes.
- Integrated Performance: Designed as a process-integrated machine, it offers seamless operations that enhance overall production capabilities.
- Best-in-Class Machining: Delivers top-tier machining performance, providing customers with exceptional precision and reliability in their manufacturing processes.
Highlights
- Travels - X Axis Travel distance (mm): 250
- Travels - Z Axis Travel distance (mm): 650
- Chuck size (mm): 203.2
- Max. Turning Diameter (mm): 370
- Max. Turning Length (mm): 600
Compatible Control System
Series description
The PUMA TL2000/2500 series is designed to enhance productivity through high-efficiency machining. As a process-integrated machine, the PUMA TL series offers exceptional performance and best-in-class machining capabilities, making it ideal for industries requiring reliable, high-precision production. These machines are engineered to deliver new levels of operational efficiency, ensuring that customers achieve optimal results in their manufacturing processes. |
Build Your Custom CNC Machine
Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!
Specifications
Travels
Travels - X Axis Travel distance (mm) | 250 |
---|---|
Travels - Z Axis Travel distance (mm) | 650 |
Travels - X Axis Rapid Traverse (m/min) | 20 |
Travels - Z Axis Rapid Traverse (m/min) | 24 |
Tool storage capacity
Machining center - No. of tool station | 12 |
---|
Capacity
Chuck size (mm) | 203.2 |
---|---|
Max. Turning Diameter (mm) | 370 |
Max. Turning Length (mm) | 600 |
Bar Capacity (mm) | 65 |
Main spindle
Main Spindle Max. Speed | 5000 |
---|---|
Main Spindle Max. Power | 22 |
Main Spindle Max. Torque | 477 |
Turret
Turret - No. of tool station | 12 |
---|
Dimensions
Length (mm) | 3250 |
---|---|
Height (mm) | 1930 |
Width (mm) | 2118 |
Weight (kg) | 7200 |
Name | Download | File type | |
---|---|---|---|
|
PUMA_TL.pdf | 7544 KB | |
|
TOOLING SYSTEM-PUMA-TL-2000-2500.pdf | 444 KB |
Series delivery and installation
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
