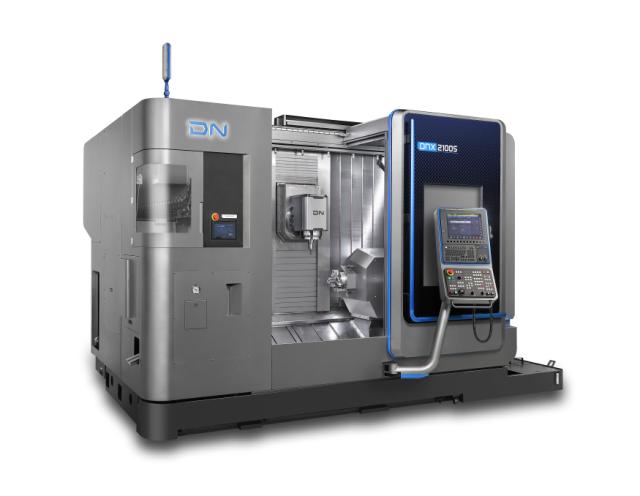

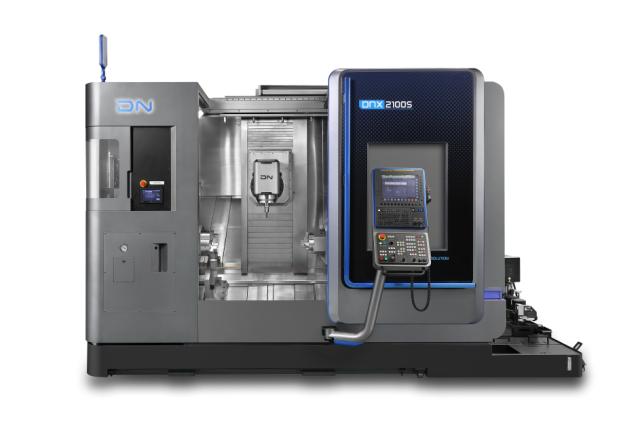

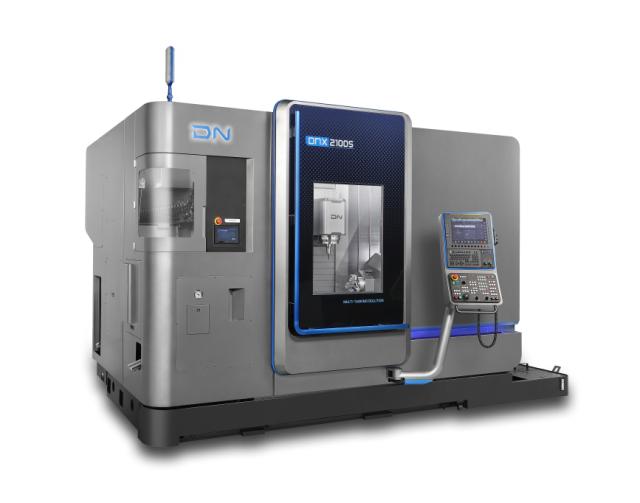

DNX2100

MULTI AXIS TURNING CENTER

  • Multitasking Capability: Supports both advanced turning and high-speed milling with integrated spindles and Y-axis travel for complex part geometries.
  • Extended Machining Area: Accommodates larger parts with a spacious machining envelope (max. 520 mm diameter × 1100 mm length) and enhanced accessibility for setup.
  • Efficient Tool Management: Servo-driven automatic tool changer with up to 60-tool capacity and random access indexing significantly reduces changeover time and boosts productivity

Highlights

  • Chuck size (mm): 210
  • Max. Turning Diameter (mm): 520
  • Max. Turning Length (mm): 1100

Compatible Control System

    Fanuc

Series description

The DNX Series from DN Solutions is a next-generation multi-axis turning center that integrates powerful turning capabilities with high-precision milling performance. Designed to handle large, long, and complex workpieces, it combines a rigid box guideway structure with a high-speed milling spindle and an orthogonal machining layout for optimal accuracy and stability.

The DNX Series excels in multitasking operations, offering exceptional productivity and machining flexibility for demanding applications across a wide range of materials and industries. Features such as a servo-driven tailstock, spacious machining envelope, and expandable automatic tool changer make it an ideal solution for heavy-duty, high-speed, and precision-driven environments.

Capacity

Chuck size (mm) 210
Max. Turning Diameter (mm) 520
Max. Turning Length (mm) 1100

Left spindle

Left Spindle Max. Speed 5000
Left Spindle Max. Power 18.5/15
Left Spindle Max. Torque 326

Dimensions

Length (mm) 4615
Height (mm) 2630
Width (mm) 2285
Weight (kg) 10500
  Name Download File type
DNX2100
DNX_2100.pdf 429 KB
.pdf
