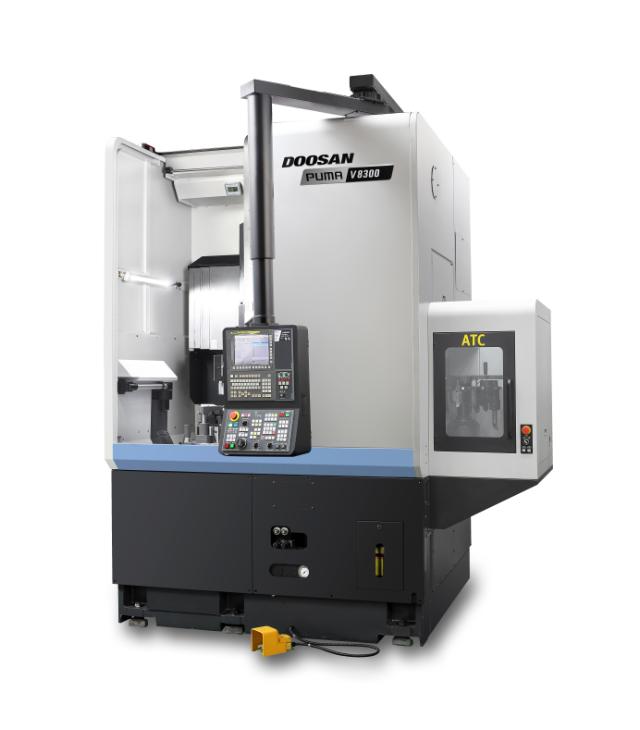

PUMA V8300 Series

HIGH PRODUCTIVITY VERTICAL TURNING CENTER

  • Exceptional Stability and Rigidity: Both models feature robust construction with integral box guideways and reinforced bed frames, ensuring high stability and precision in heavy-duty machining.
  • Enhanced Productivity: The PUMA V8300/9300 Series offers the largest turning capacity in its class, significantly boosting productivity and profitability.
  • Compact Efficiency: The PUMA V400's compact footprint allows for efficient space utilization without compromising on performance and accuracy.

Highlights

  • Travels - X Axis Travel distance (mm): 495
  • Travels - Z Axis Travel distance (mm): 780
  • Chuck size (mm): 381
  • Max. Turning Diameter (mm): 830
  • Max. Turning Length (mm): 780

Compatible Control System

    Fanuc

Series description

The PUMA V400 and PUMA V8300/9300 Series are high-performance vertical turning centers designed for heavy-duty machining. The compact PUMA V400 offers powerful spindle drives, Meehanite casting, and integral box guideway construction for exceptional stability and accuracy. The PUMA V8300/9300 Series, with 15" to 32" chuck sizes, features a column-integrated box guideway and reinforced bed frame, providing robust structure and the largest turning capacity in its class for enhanced productivity and profitability.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

DETAIL1635 https://youtu.be/jgZaP2j5eFM https://youtu.be/jgZaP2j5eFM

Travels

Travels - X Axis Travel distance (mm) 495
Travels - Z Axis Travel distance (mm) 780
Travels - X Axis Rapid Traverse (m/min) 20
Travels - Z Axis Rapid Traverse (m/min) 20

Tool storage capacity

Machining center - No. of tool station 12

Capacity

Chuck size (mm) 381
Max. Turning Diameter (mm) 830
Max. Turning Length (mm) 780
Bar Capacity (mm) n/a

Main spindle

Main Spindle Max. Speed 2000
Main Spindle Max. Power 37
Main Spindle Max. Torque 2592

Turret

Turret - No. of tool station 12

Dimensions

Length (mm) 2005
Height (mm) 3636
Width (mm) 2715
Weight (kg) 9400

The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
