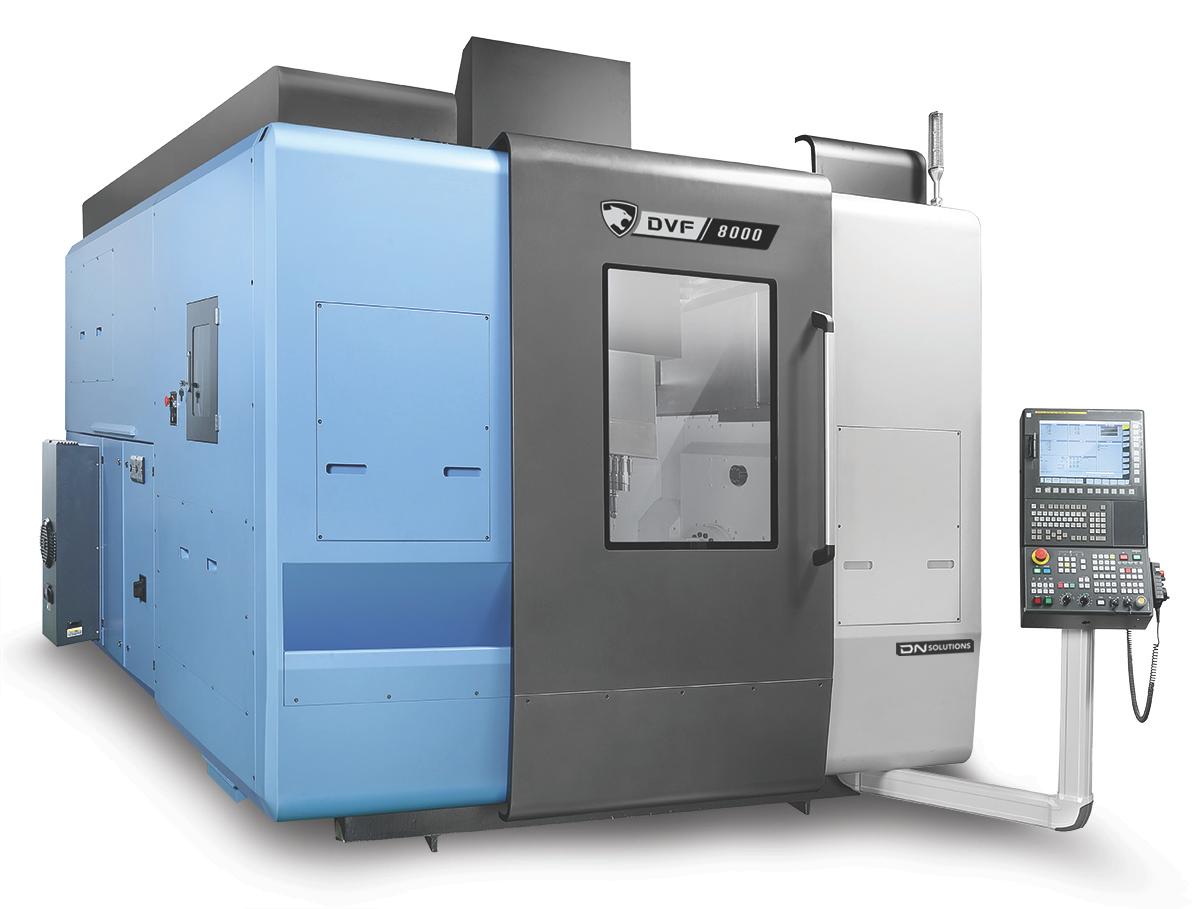

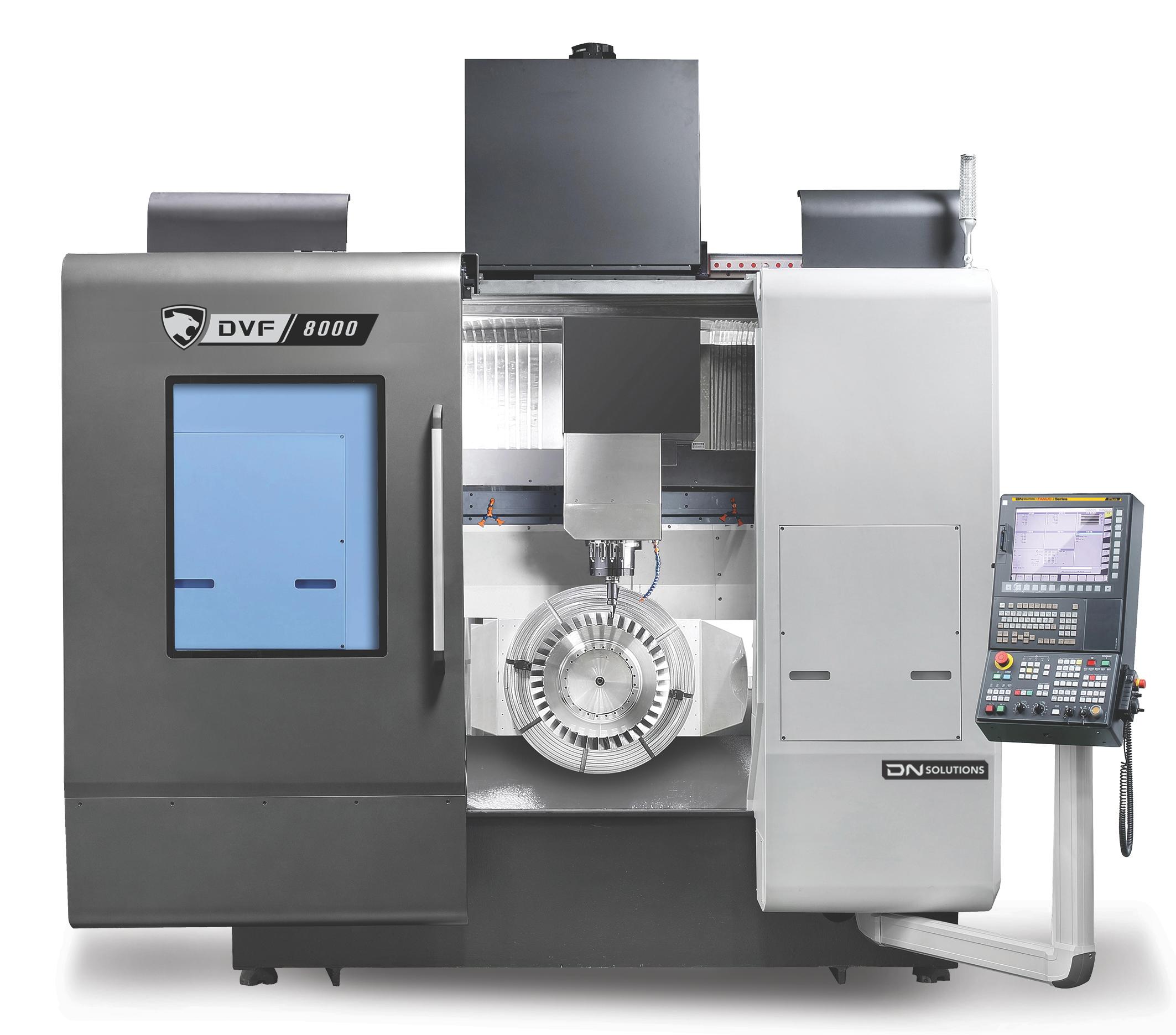

DVF 8000
- High Precision: Designed for accurate machining of complex parts with advanced 5-axis capabilities.
- Compact and Stable: Ideal for small to medium-sized workpieces, offering a stable structure in a space-saving design.
- Eco-Friendly and Cost-Effective: Features grease lubrication on X/Y/Z axes, reducing environmental impact and operational costs.
Highlights
- Travels - X Axis Travel distance (mm): 1000
- Travels - Y Axis Travel distance (mm): 900
- Travels - Z Axis Travel distance (mm): 685
Series description
|
The DVF Series includes premium 5-axis vertical machining centers, such as the DVF 4000, DVF 5000, DVF 6500, and DVF 8000, all designed for high-precision machining of complex parts. These models offer enhanced reliability and productivity, featuring eco-friendly grease lubrication on the X/Y/Z axes. Their stable structure and compact footprint make them ideal for producing small to medium-sized workpieces with intricate shapes. Additionally, the DVF Series provides optional table turning functionality for complete machining in a single setup, catering to a wide range of manufacturing needs. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 1000 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 900 |
| Travels - Z Axis Travel distance (mm) | 685 |
| Travels - Z Axis Rapid Traverse (m/min) | 45 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 45 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 45 |
| Feed rate - Z Axis Rapid Traverse | 45 |
Table
| Table Length (mm) | dia 800 |
|---|---|
| Table Width (mm) | dia 800 |
| Max. Workpiece weight (kg) | 1400 |
| Pallet Size (mm) | dia 800 |
| Rotary Table Diameter (mm) | 800 |
| Max. Table weight (kg) | 1400 |
Workpiece capacity
| Max. Workpiece Diameter (mm) | 1000 |
|---|---|
| Max. Workpiece Height (mm) | 590 |
| Max. Workpiece weight (kg) | 1400 |
Tool storage capacity
| Machining center - No. of tool station | 40/60/120 |
|---|
Capacity
| Table to spindle nose | 840 |
|---|
Main spindle
| Main Spindle Max. Speed | 12000 |
|---|---|
| Main Spindle Max. Power | 22 |
| Main Spindle Max. Torque | 204 |
| Tool Taper (ISO) | 40 |
Turret
| Turret - No. of tool station | 40 |
|---|
Dimensions
| Length (mm) | 4097 |
|---|---|
| Height (mm) | 3670 |
| Width (mm) | 2950 |
| Weight (kg) | 25000 |
| Name | Download | File type | |
|---|---|---|---|
|
DVF_6500-8000-8000T.pdf | 6115 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
