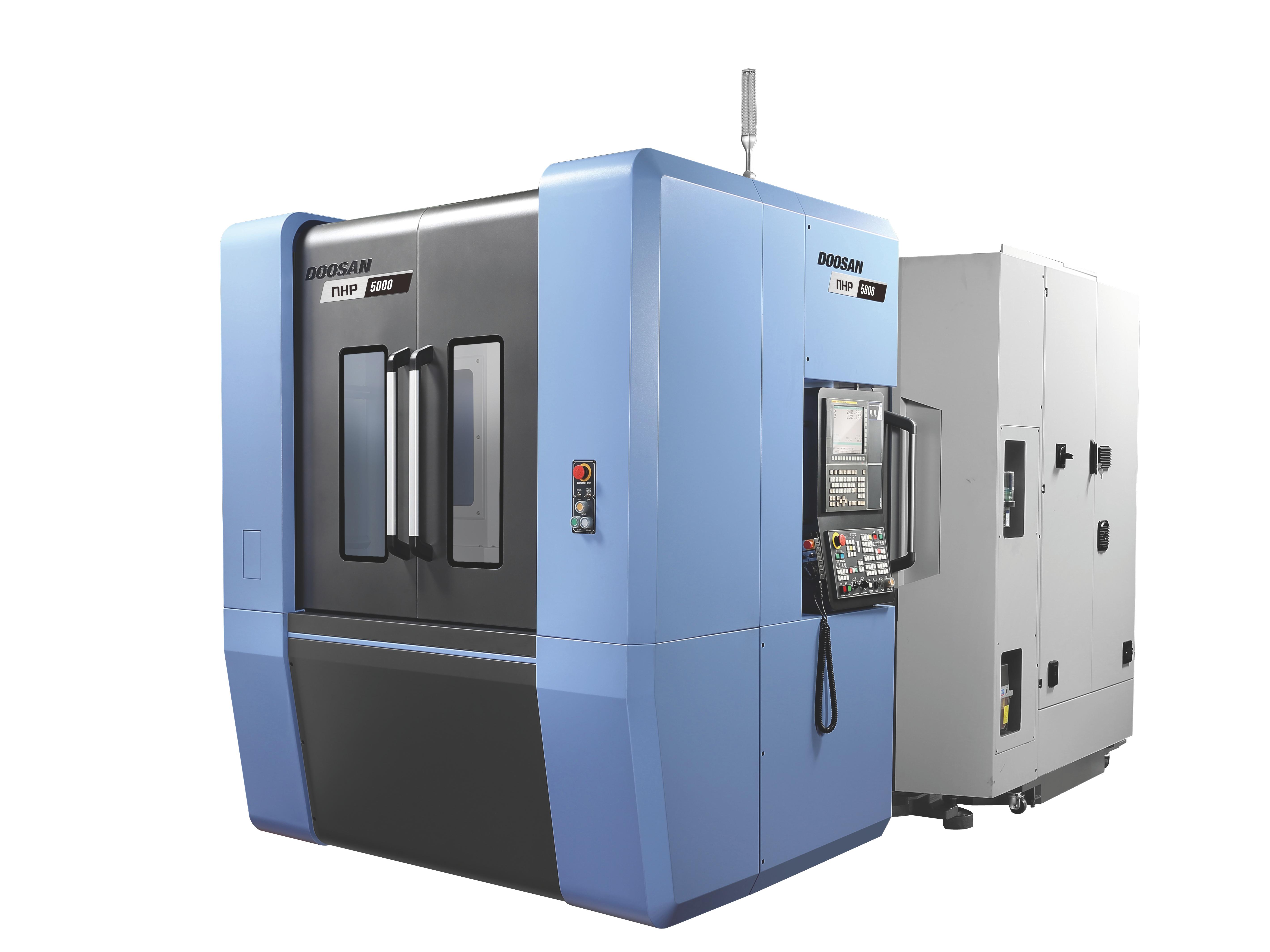

NHP 5000

HIGH PRODUCTIVITY HORIZONTAL MACHINING CENTER

  • Unmatched Accuracy and Productivity: Thermal compensation and minimized non-cutting time ensure precise and efficient machining.
  • Enhanced Performance: Faster feed rates, tool changes, and table rotation boost productivity, especially in the NHP 5500 model.
  • Eco-Friendly and Reliable: Grease lubrication and advanced cooling systems offer sustainable operation with long-term stability and accuracy.

Highlights

  • Travels - X Axis Travel distance (mm): 730
  • Travels - Y Axis Travel distance (mm): 730
  • Travels - Z Axis Travel distance (mm): 880

Compatible Control System

    Fanuc

Series description

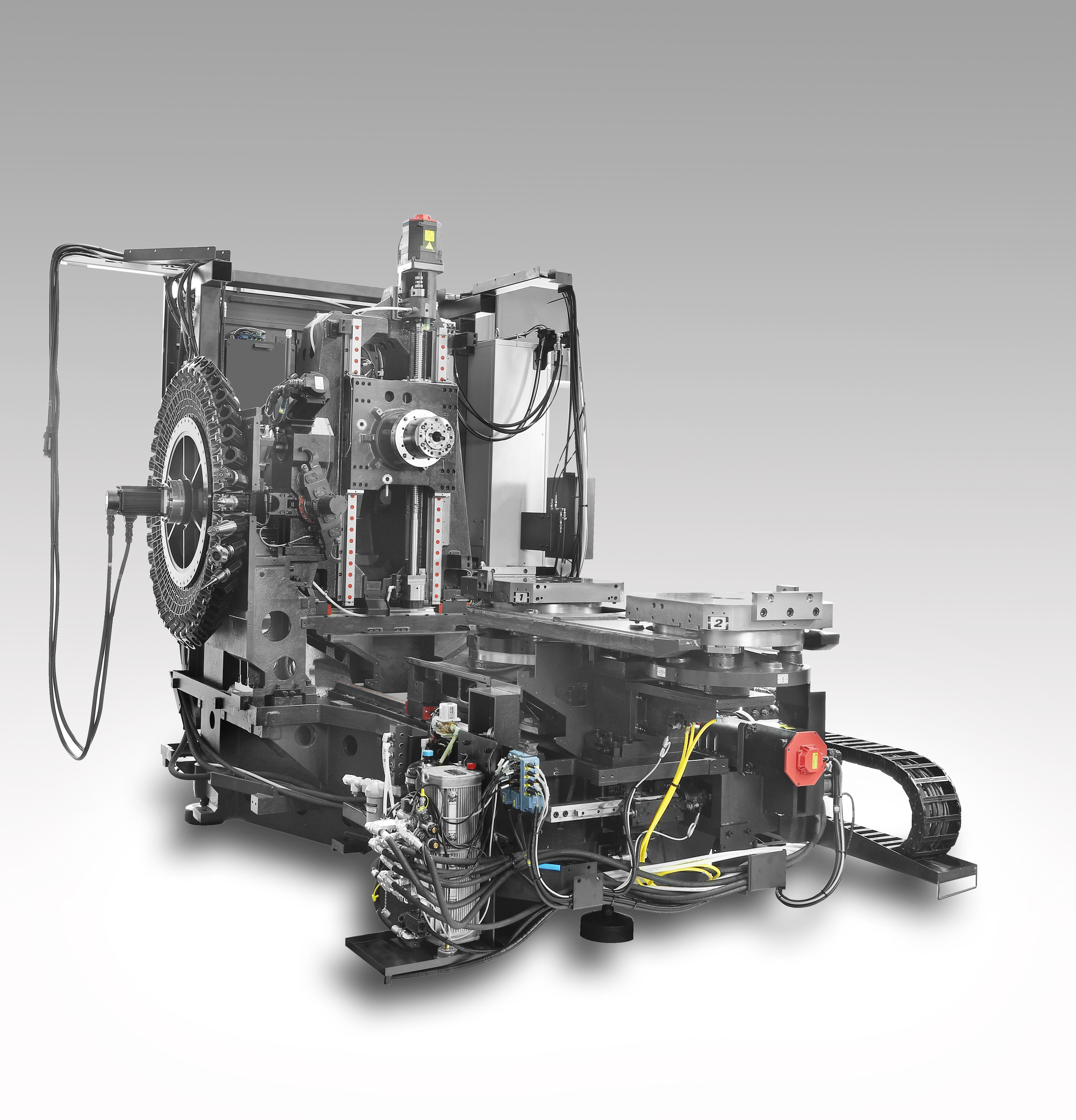

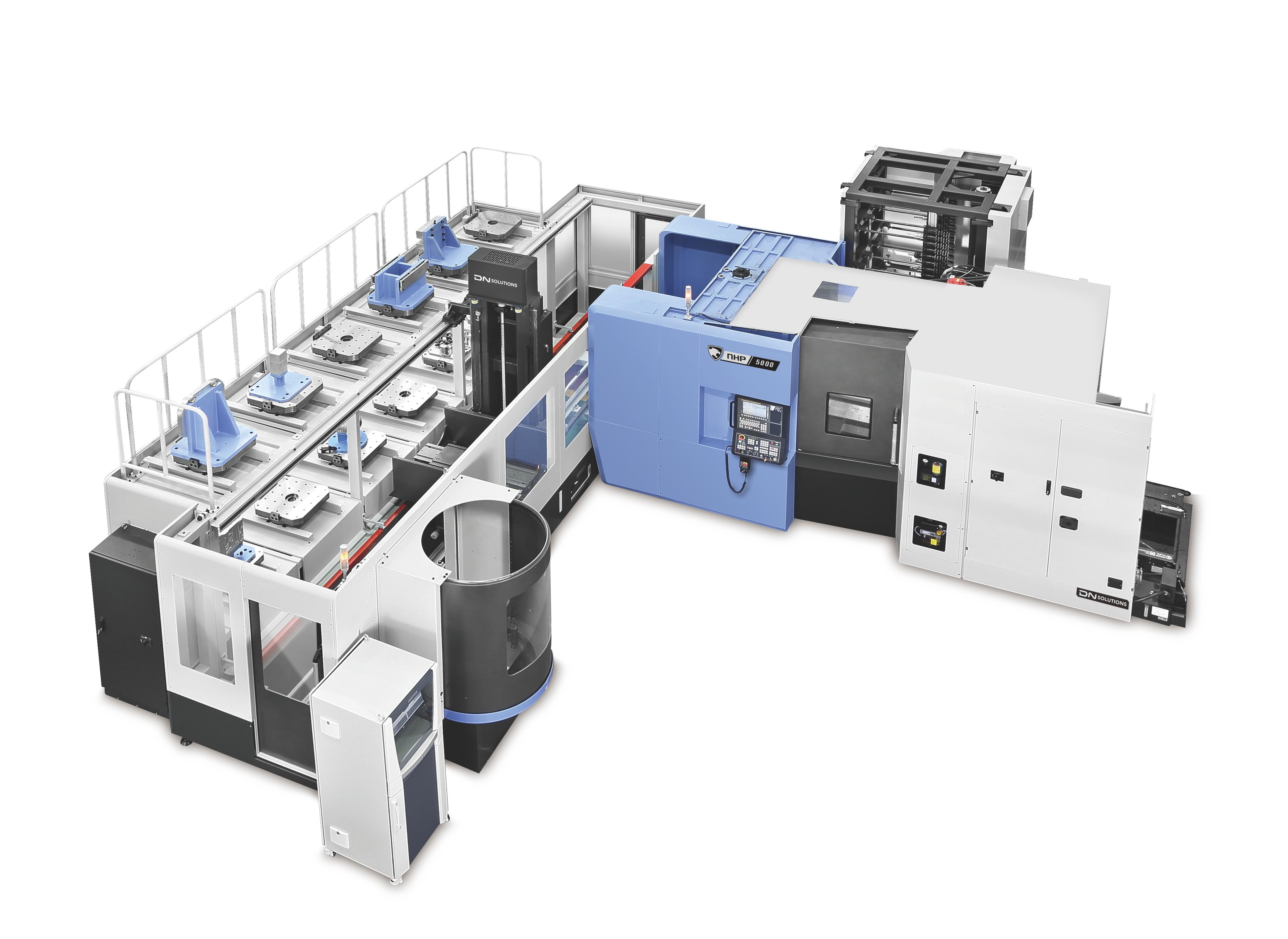

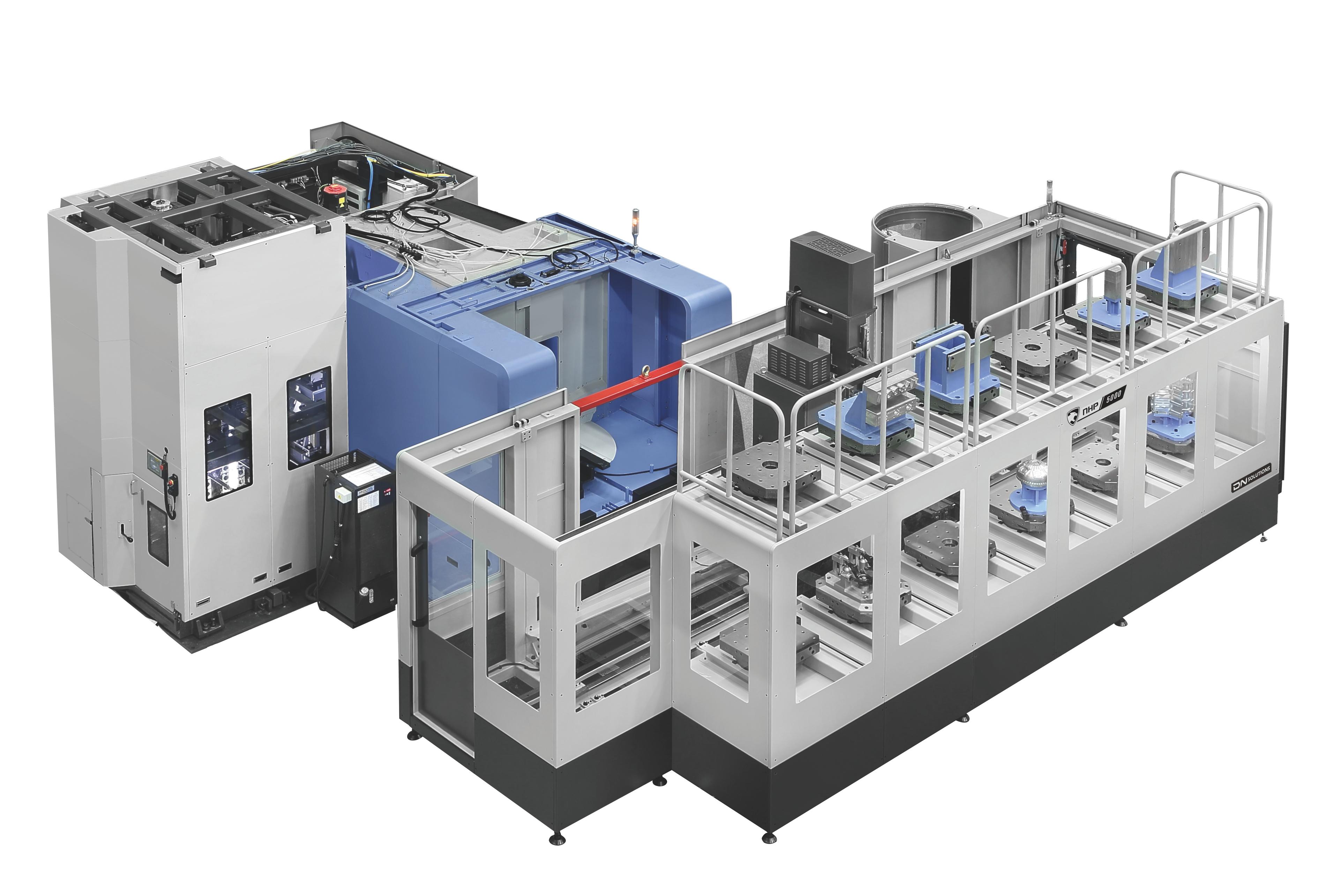

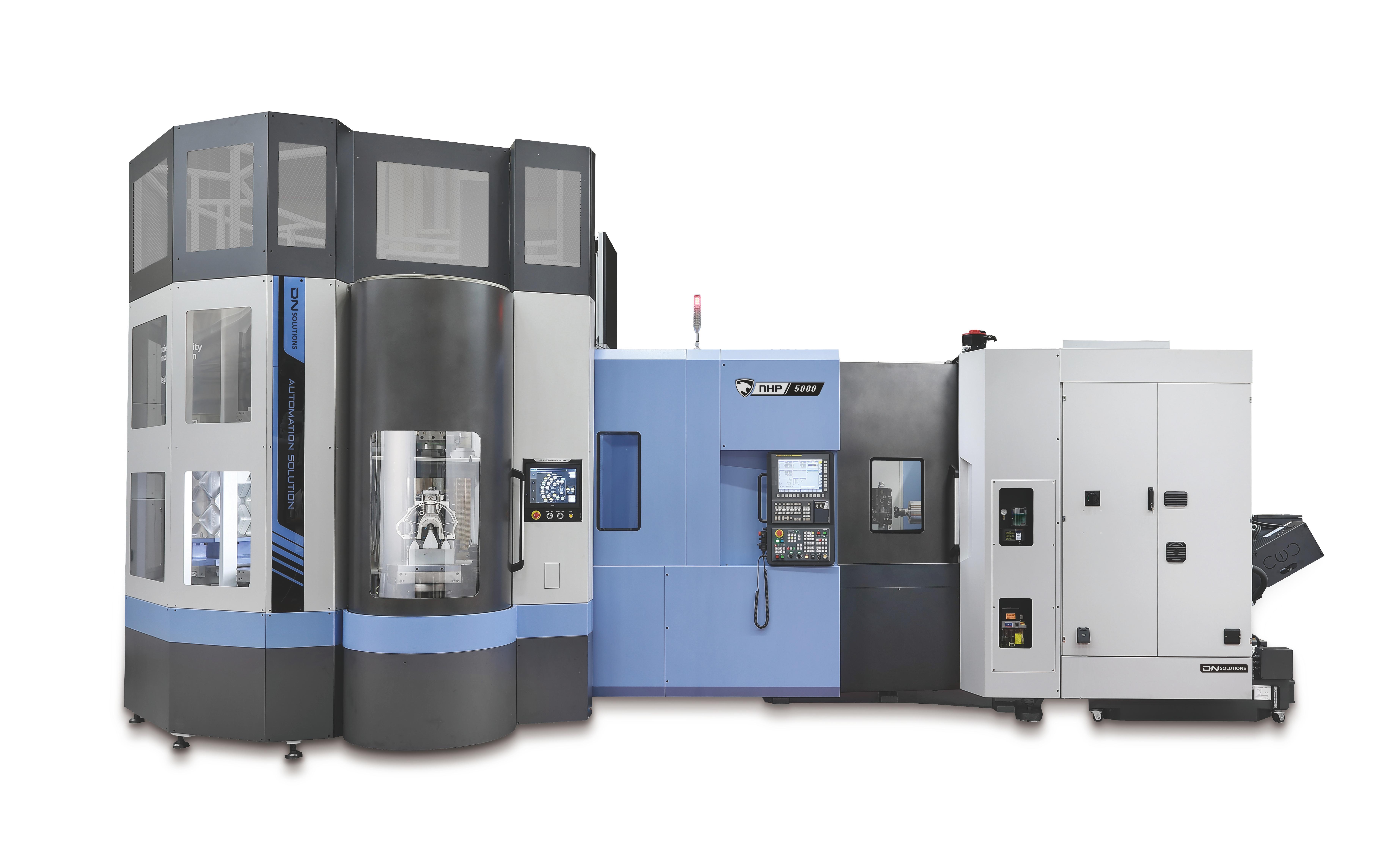

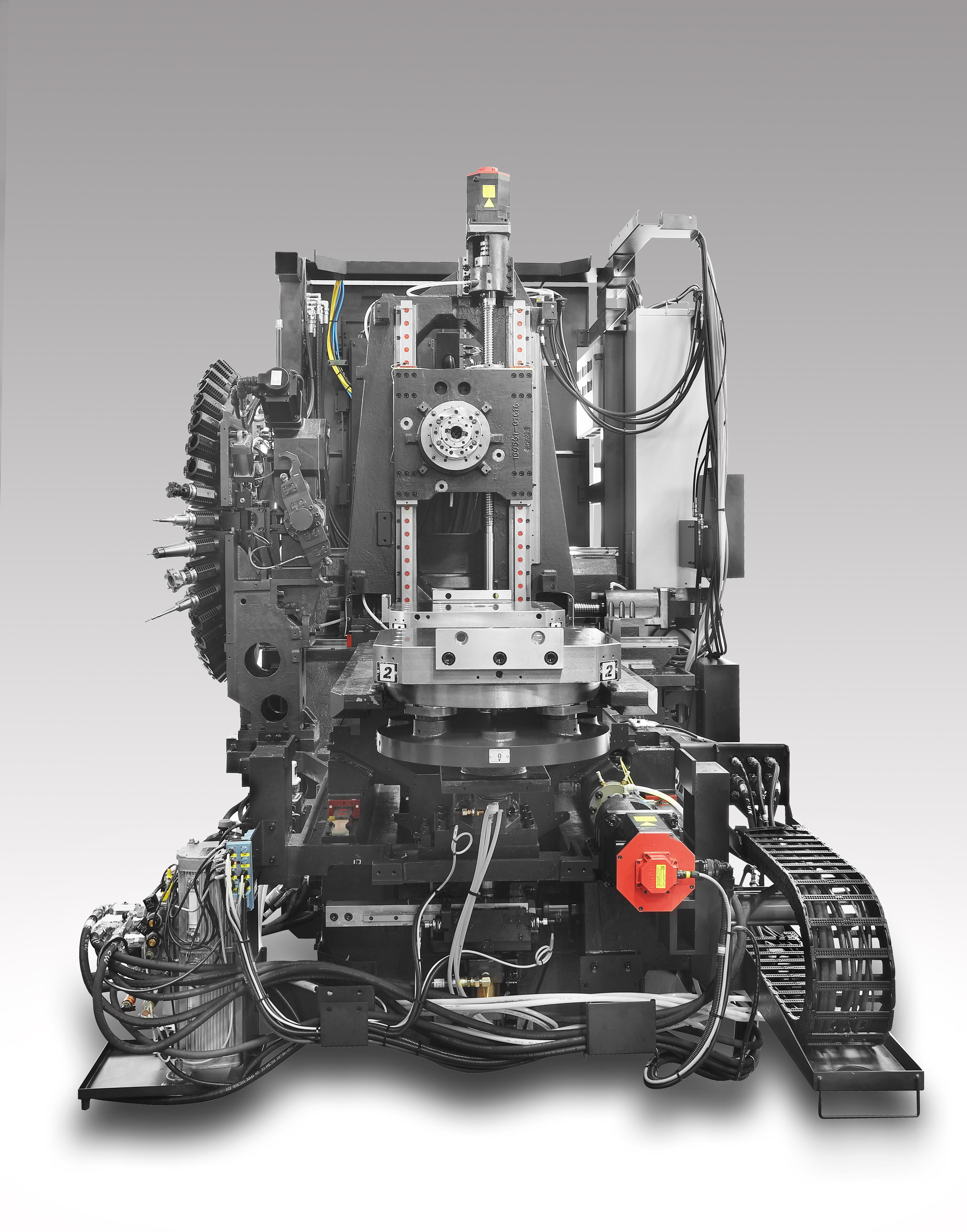

The NHP Series, including the NHP 4000/5000 and NHP 5500 2nd models, consists of advanced horizontal machining centers known for their stable structures, thermal compensation systems, and minimized non-cutting time, delivering exceptional accuracy and productivity. These machines use eco-friendly grease lubrication for all ballscrews and are ideal for machining small to medium-sized components. The NHP 5500 2nd model further enhances productivity with faster feed rates, reduced tool change times, and improved table rotation speed. Equipped with spindle smart thermal control, cooling systems, and a 3-point support structure, it ensures superior machining accuracy and stable, continuous operation, complemented by various automation solutions and efficient chip removal.

Build Your Custom CNC Machine

Configure your perfect CNC milling machine or lathe by selecting from a range of customizable options. Some standard options have already been added to your machine and are pre-selected for your convenience. Once you've chosen your additional features, add them to the quote basket, and our sales team will get back to you with pricing details. Start building your ideal machine today!

DETAIL1885 https://youtu.be/b01w8ajOFgk https://youtu.be/b01w8ajOFgk

Travels

Travels - X Axis Travel distance (mm) 730
Travels - Y Axis Travel distance (mm) 730
Travels - Z Axis Travel distance (mm) 880
Travels - Z Axis Rapid Traverse (m/min) 60

Feed rates

Feed rate - X Axis Rapid Traverse 60
Feed rate - Y Axis Rapid Traverse 60
Feed rate - Z Axis Rapid Traverse 60

Table

Max. Workpiece weight (kg) 500
Pallet Size (mm) 500x500

Workpiece capacity

Max. Workpiece Diameter (mm) 800
Max. Workpiece Height (mm) 1000
Max. Workpiece weight (kg) 500

Tool storage capacity

Machining center - No. of tool station 40

Main spindle

Main Spindle Max. Speed 15000
Main Spindle Max. Power 37
Main Spindle Max. Torque 303
Tool Taper (ISO) 40

Turret

Turret - No. of tool station 40

Dimensions

Length (mm) 5450
Height (mm) 2880
Width (mm) 2680
Weight (kg) 11500
  Name Download File type
NHP 5000
NHP_4000_5000 .pdf 2920 KB
.pdf

The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors.
