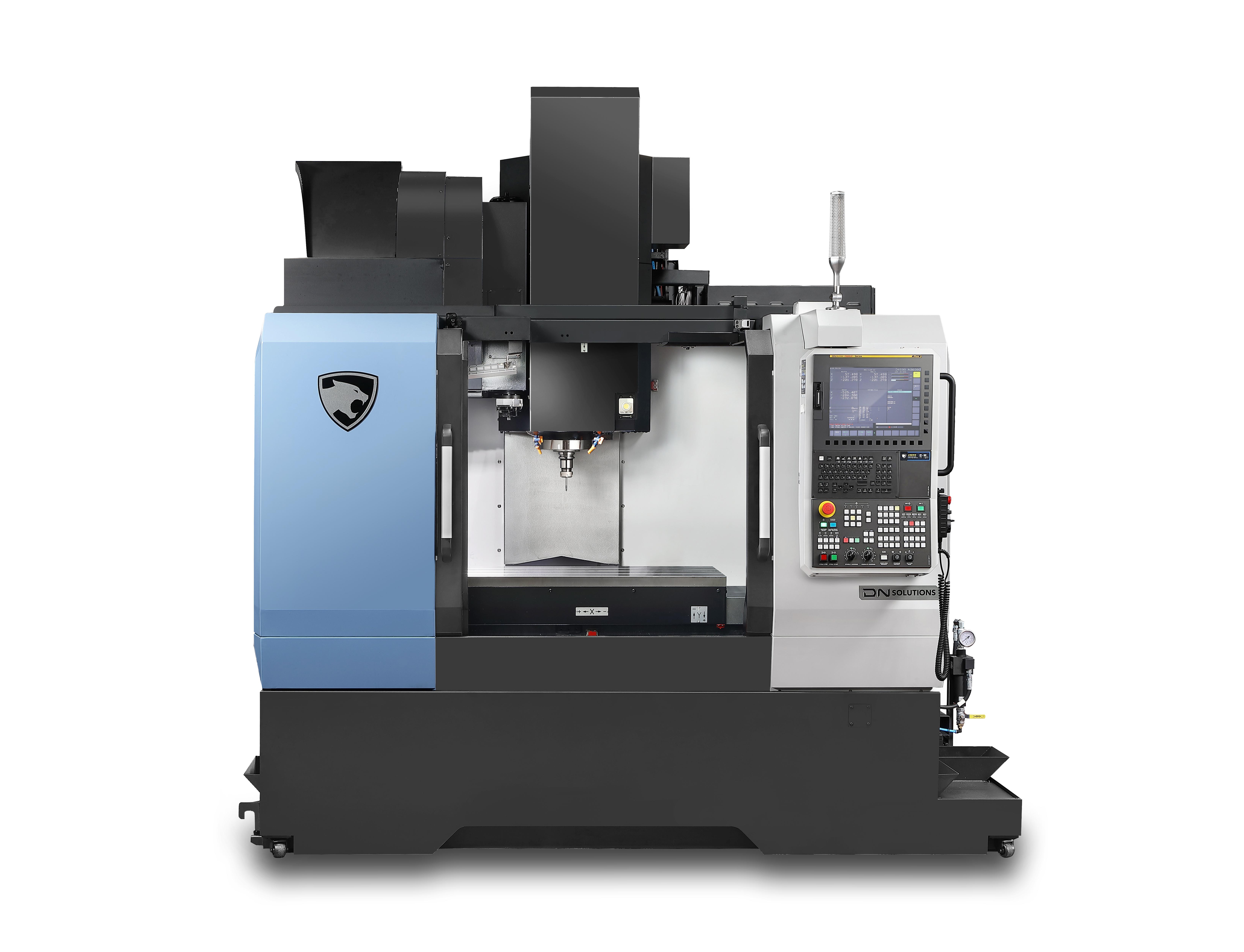

DNM 4500
- Enhanced Reliability: Builds on the proven success of previous generations with improved durability and performance.
- Eco-Friendly Operation: Standard grease lubrication on spindle and axes promotes sustainable and cost-effective machining.
- User-Friendly Design: Engineered for outstanding productivity and ease of use, ensuring efficient and convenient operation.
Highlights
- Travels - X Axis Travel distance (mm): 800
- Travels - Y Axis Travel distance (mm): 450
- Travels - Z Axis Travel distance (mm): 510
Series description
|
The 4th Generation DNM Series builds on the global success of its predecessors, offering enhanced reliability, durability, and productivity. With eco-friendly grease lubrication applied to the spindle and each axis as standard, this series is designed for sustainable operation. The 4th Gen DNM machines are engineered for best-in-class rigidity and user convenience, ensuring high performance across a wide range of applications while maintaining the trusted reputation of the DNM name. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 800 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 450 |
| Travels - Z Axis Travel distance (mm) | 510 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 42 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 42 |
| Feed rate - Z Axis Rapid Traverse | 36 |
Table
| Table Length (mm) | 1000 |
|---|---|
| Table Width (mm) | 450 |
| Max. Workpiece weight (kg) | 600 |
Workpiece capacity
| Max. Workpiece Height (mm) | 590 |
|---|---|
| Max. Workpiece weight (kg) | 600 |
Tool storage capacity
| Machining center - No. of tool station | 30 |
|---|
Main spindle
| Tool Taper (ISO) | 40 |
|---|
Dimensions
| Length (mm) | 2200 |
|---|---|
| Height (mm) | 2980 |
| Width (mm) | 2835 |
| Weight (kg) | 5000 |
| Name | Download | File type | |
|---|---|---|---|
.pdf&width=60&format=webp)
|
DNM Series (4th Gen.).pdf | 4791 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
