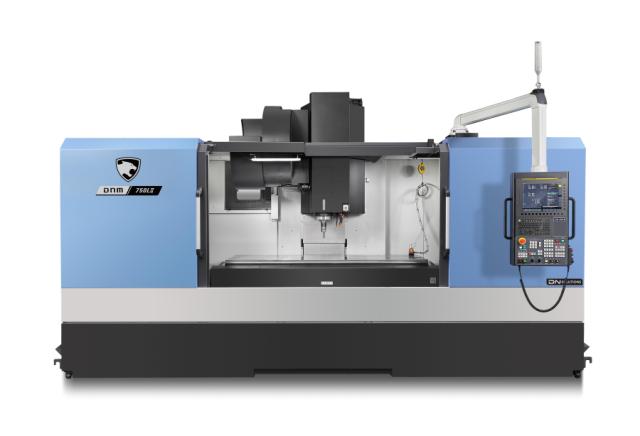

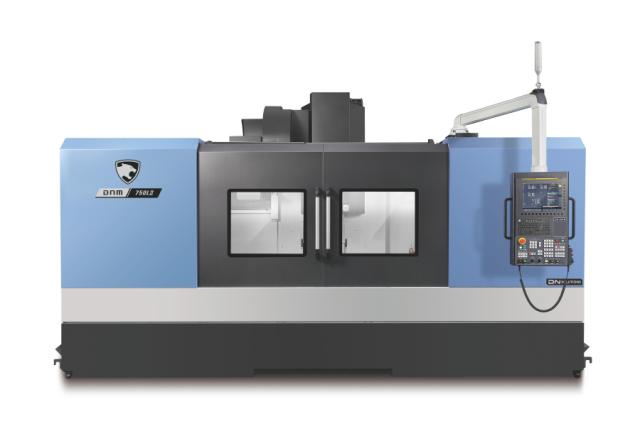

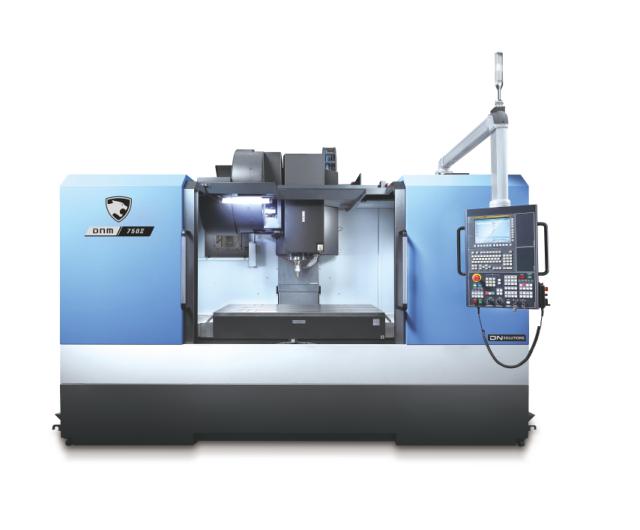

DNM 750L II
- Versatile Performance: High speed, rigidity, and adaptability make the DNM Series ideal for a wide range of machining applications.
- Eco-Friendly Operation: Grease lubrication on roller guideways promotes sustainability while maintaining top performance.
- Compact Efficiency: Models like the DNM 4000 maximize productivity in limited spaces, with features designed for operator ease and convenience.
Highlights
- Travels - X Axis Travel distance (mm): 2160
- Travels - Y Axis Travel distance (mm): 762
- Travels - Z Axis Travel distance (mm): 650
Series description
|
The DNM Series continues its legacy of success with enhanced reliability and performance in its latest models. Focused on high speed, high rigidity, and versatility, the DNM 4500/5000/6500 models cater to a wide range of machining applications. The series now features eco-friendly grease lubrication for roller guideways, ensuring sustainable operation. The compact DNM 4000, with a 400mm Y-axis stroke and directly-coupled 40 taper spindle, maximizes productivity in a minimized footprint, perfect for space-constrained environments. The DNM 50 II series further enhances performance with directly coupled spindles, rigid columns, and user-friendly Ez work functions for improved efficiency and ease of use. |
Specifications
Travels
| Travels - X Axis Travel distance (mm) | 2160 |
|---|---|
| Travels - Y Axis Travel distance (mm) | 762 |
| Travels - Z Axis Travel distance (mm) | 650 |
Feed rates
| Feed rate - X Axis Rapid Traverse | 24 |
|---|---|
| Feed rate - Y Axis Rapid Traverse | 24 |
| Feed rate - Z Axis Rapid Traverse | 24 |

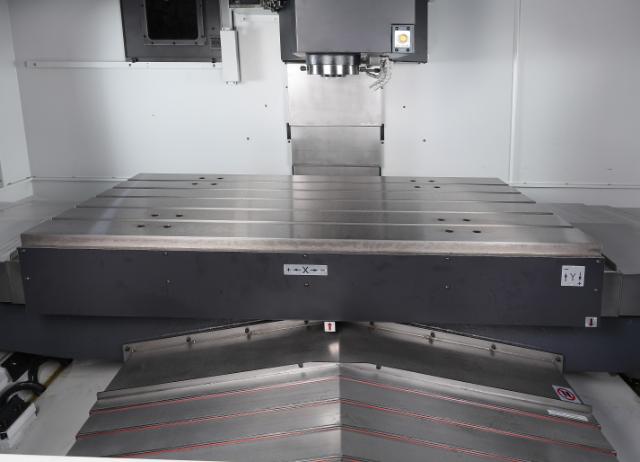

Table
| Table Length (mm) | 2160 |
|---|---|
| Table Width (mm) | 760 |
| Max. Workpiece weight (kg) | 1800 |
Workpiece capacity
| Max. Workpiece Height (mm) | 725 |
|---|---|
| Max. Workpiece weight (kg) | 1800 |

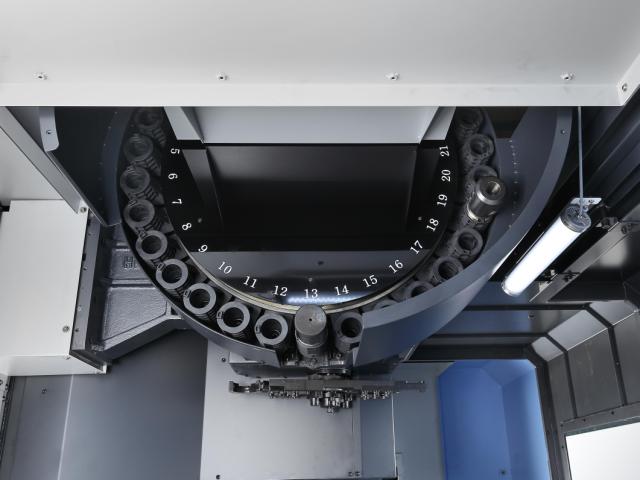

Tool storage capacity
| Machining center - No. of tool station | 30 |
|---|

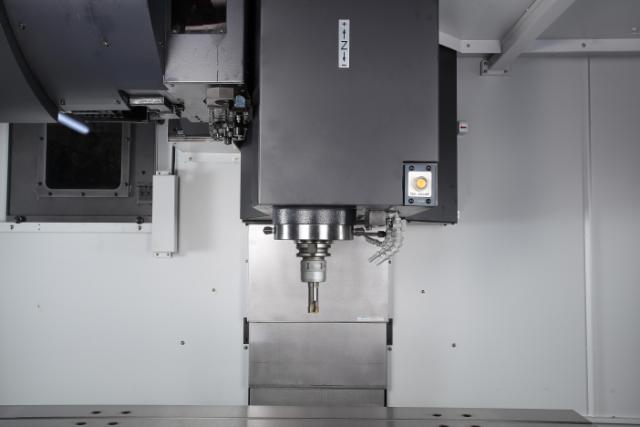

Main spindle
| Main Spindle Max. Speed | 8000 |
|---|---|
| Main Spindle Max. Power | 21.8 |
| Main Spindle Max. Torque | 150.1 |
| Tool Taper (ISO) | 40 |
Turret
| Turret - No. of tool station | 30 |
|---|
Dimensions
| Length (mm) | 3480 |
|---|---|
| Height (mm) | 3170 |
| Width (mm) | 4900 |
| Weight (kg) | 15000 |
| Name | Download | File type | |
|---|---|---|---|
|
DNM 650_50_750_50.pdf | 2821 KB |
Series delivery and installation
|
The project team manages the entire process, including delivery, installation, and commissioning of the machine, ensuring a seamless project flow. The project team ensures coordination and communication between the project's parties, including the customer, Duroc Machine Tool, and any third-party subcontractors. |
